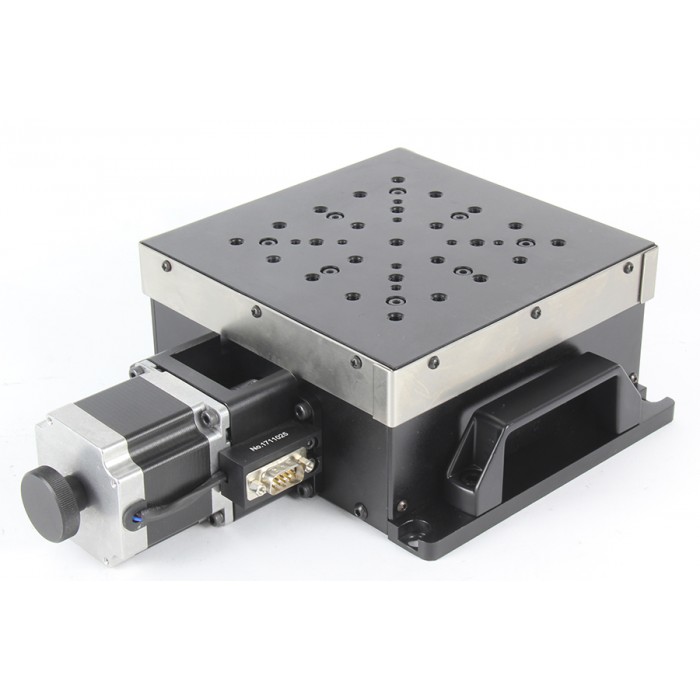

Motorized Vertical Positioner, 12mm of Vertical Travel

Structure Specifications

Item Number: SD02VA12

Travel Range: 12mm (0.47")

Dimension of Platform: 160mm x 160mm (6.24" x 6.24")

Drive Mechanism: Gringding Screw

Travel Guide: High Precision Recirculating Ball Slide Rail

Stepper Motor (1.8°): STP-57D3016

2-Phases & 1.8° of Step Angle are required.

Material – Finish: Aluminum Alloy - Black-Anodized

Max On-Axis Load Capacity: 40kg (88lbs)

Weight: 5kg (11lbs)

Accuracy Specifications

Resolution: 0.5μm

Max Velocity: 10mm/sec

Bi-directional Repeatability: 3μm

Backlash: 10μm

Optional Accessories: Home Location

Limit Switches are Existing.

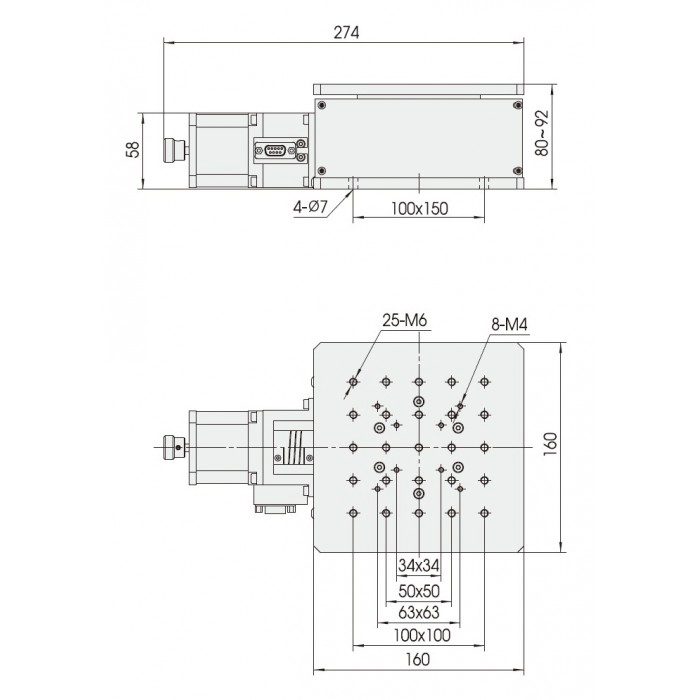

3D drawing STEP format
