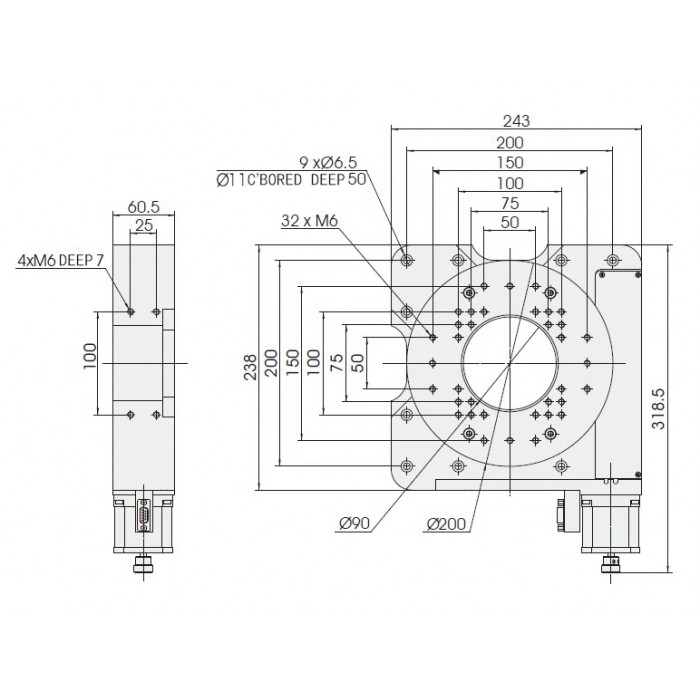

Vertical Using Motorized Rotation Stage, Platform Ø200mm

Item Number: SD07RA200V

Structure

Travel Range: 360°

Platform: Ø200mm (Ø7.88")

Aperture: Ø90mm (Ø3.54")

Drive Mechanism: Worm Gear

Worm Gear Ratio: 180: 1

Stepper Motor: NEMA 23 with 2 Phases & 1.8°of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: Horizontally 60kg (132lbs) Vertically 15kg (33lbs)

Weight: 10kg (22lbs)

Accuracy

Design Resolution: 4.5”

Max Velocity: 25°/sec

Bi-directional Repeatability: 0.004°

Absolute On-Axis Accuracy: 0.03°

Run-Out of Top Plate: <0.04mm

Backlash: 0.03°

Eccentricity: <20μm

Degree of Parallelization: <80μm

Optional Accessories: Servo Motor (-S)

Home Switch is exist.
