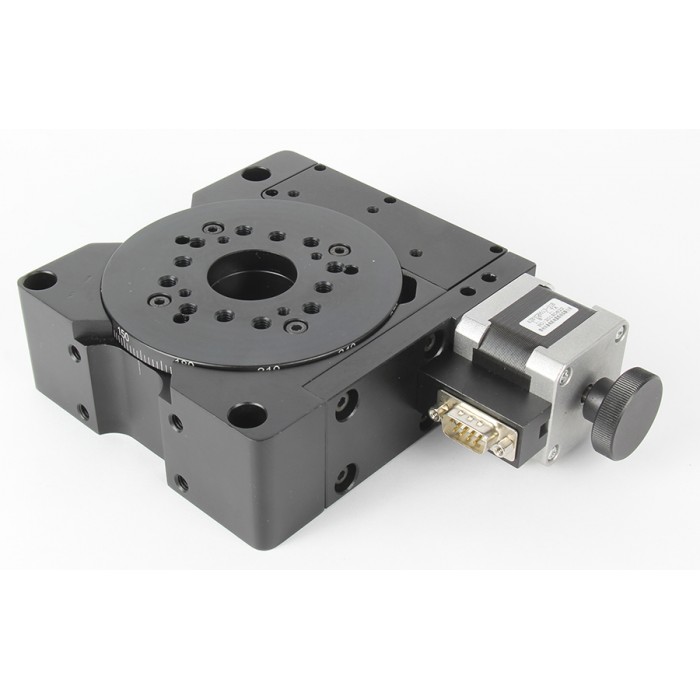

Vertical Using Motorized Rotation Stage, Platform Ø100mm

Item Number: SD06RA100V

Structure

Travel Range: 360°

Platform: Ø100mm (Ø3.94")

Aperture: Ø30mm (Ø1.18")

Drive Mechanism: Worm Gear

Worm Gear Ratio: 180: 1

Stepper Motor: NEMA 17 with 2 Phases & 1.8°of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: Horizontally 50kg (110lbs) Vertically 15kg (33lbs)

Weight: 2.1kg (4.62lbs)

Accuracy

Design Resolution: 4.5”

Max Velocity: 25°/sec

Bi-directional Repeatability: 0.004°

Absolute On-Axis Accuracy: 0.03°

Run-Out of Top Plate: <0.04mm

Backlash: 0.03°

Eccentricity: <20μm

Degree of Parallelization: <80μm

Optional Accessories: Servo Motor (-S)

Home Switch is exist.

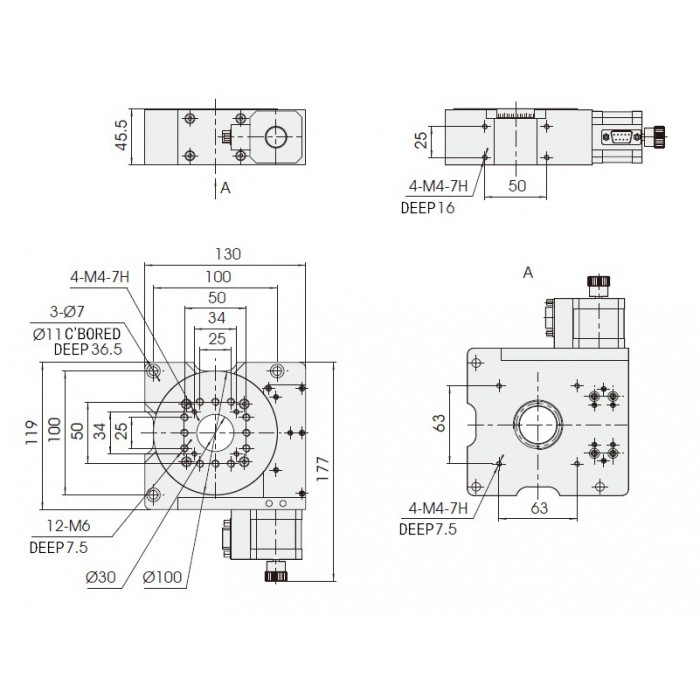

3D drawing STEP format
