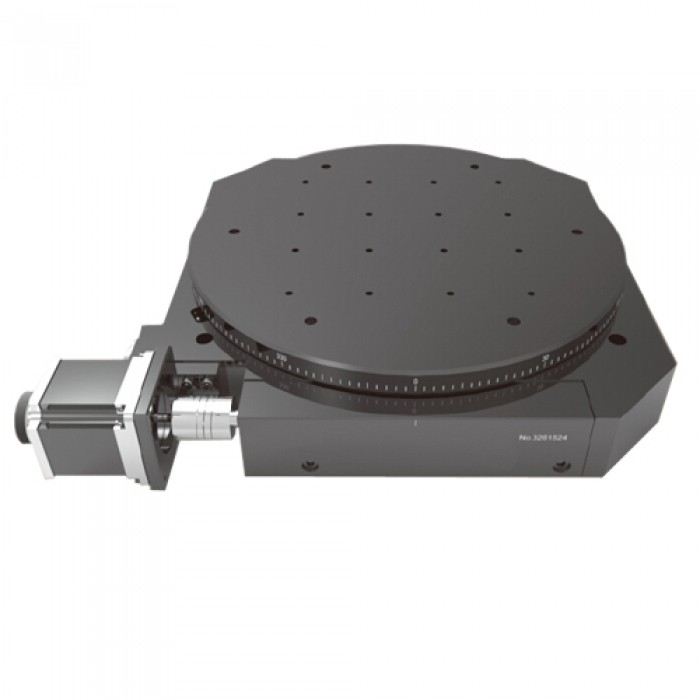

Item Number: SD04RA300

Structure

Travel Range: 360°

Platform: Ø300mm (Ø11.82")

Drive Mechanism: Worm Gear

Worm Gear Ratio: 576: 1

Stepper Motor: NEMA 23 with 2 Phases & 1.8°of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: Horizontally 70kg (154lbs) Vertically 15kg (33lbs)

Weight: 16.5kg (36.3lbs)

Accuracy

Design Resolution: 1.44”

Max Velocity: 7°/sec

Bi-directional Repeatability: 5.6”

Run-Out of Top Plate: <15μm

Backlash: 0.03°

Eccentricity: <20μm

Degree of Parallelization: <100μm

Optional Accessories: Servo Motor (-S)

Home Switch is exist.

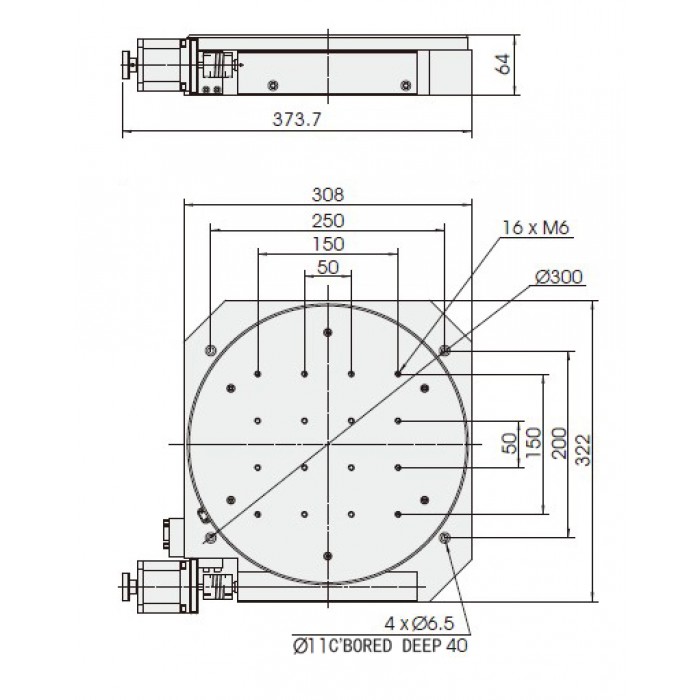

3D drawing STEP format
