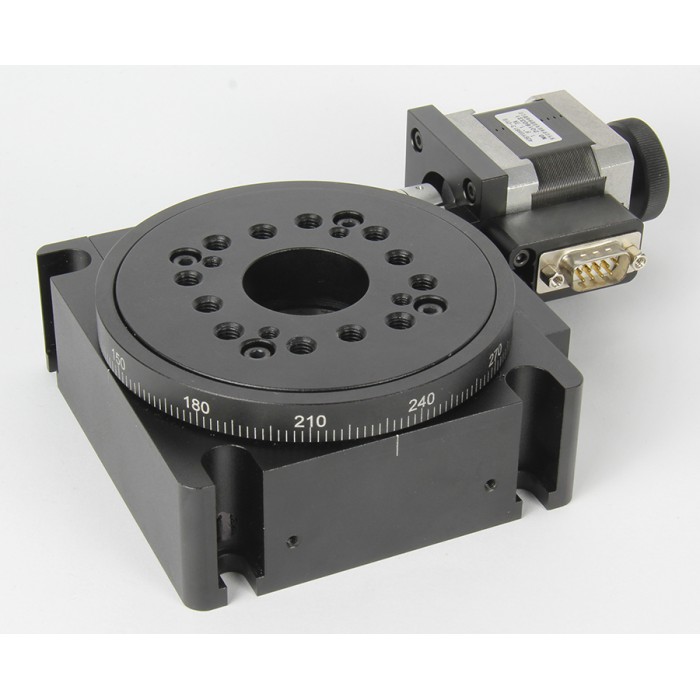

High-Performance Rotation Stage,  Ø100mm of Platform

Structure Specifications

Item Number: SD02RA100

Rotation Range: 360° of  Continuous Rotation

Diameter of Platform: Ø100mm (Ø3.94")

Drive Mechanism: Worm Gear

Worm Gear Ratio: 180 : 1

Stepper Motor (1.8°): STP-42D - Stepping Motor with 2-Phases & 1.8° of Step Angle

Material – Finish: Aluminum Alloy - Black-Anodized

On-Axis Load Capacity:
• Horizontal: 50kg (99.20lbs)
• Vertical: 10kg (22.05lbs)

Clear Aperture: Ø30mm (Ø1.17")

Weight: 1.8kg (3.75lbs)

Accuracy Specifications

Resolution:
• 0.01°, Non-MS Driver
• 0.0005°, 20MS Driver

Rotational Velocity (Max): 25°/sec

Bi-directional Repeatability: 0.03°

Absolute On-Axis Accuracy: 0.05°

Run-Out of Top Plate: <15μm

Backlash: 0.03°

Eccentricity: <20μm

Degree of Parallelization: <80μm

Optional Accessories: Hall-Effect Switch, Home Location, Servo Motor and Rotary Encoder.

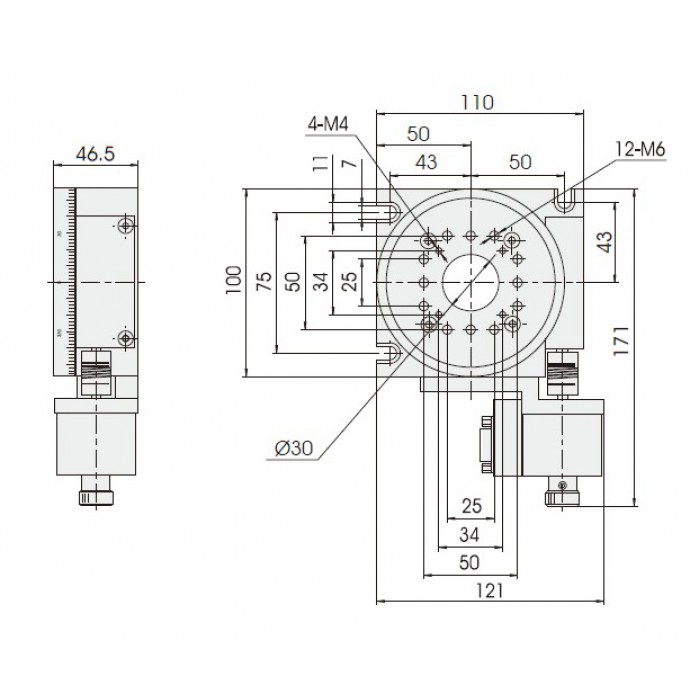

3D drawing STEP format
