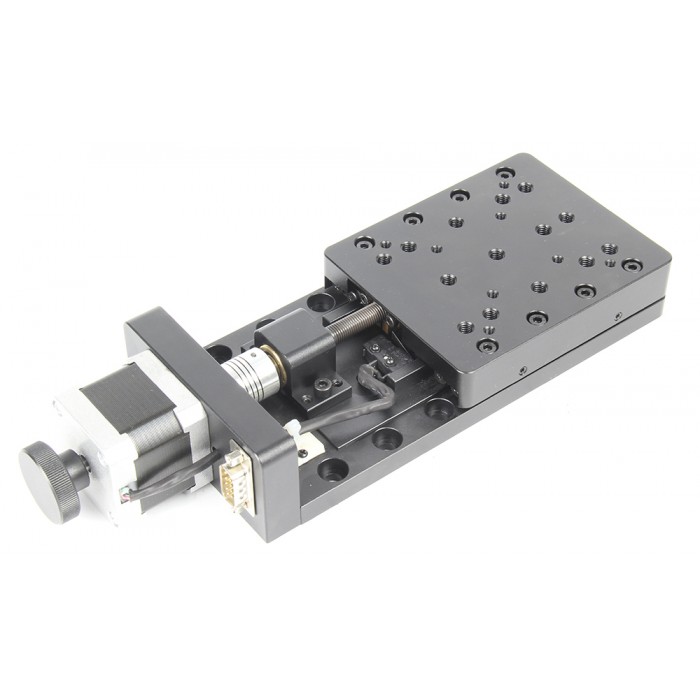

Item Number: SD03TA50

Structure

Travel Range: 50mm (1.97”)

Platform: 90mm (1.97”) x 110mm (4.33”)

Bearing Construction: Grinding Screw (1mm of leading)

Travel Guide: V-Groove & Crossed Roller Bearing

Stepper Motor: NEMA 17 with 2 Phases & 1.8°of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 10kg (22lbs)

Weight: 1.5kg (3.3lbs)

Accuracy

Design Resolution: 0.625um

Max Velocity: 10mm/sec

Bi-directional Repeatability: 5um

Absolute On-Axis Accuracy: 8um

Straightness: 3um

Degree of Parallelization: 10um

Pitching: 25”

Yawing: 50”

Backlash: 5um

Optional Accessories: Servo Motor (-S); Grating Scale (-G)

Limit Switches and Home Switches are exist.

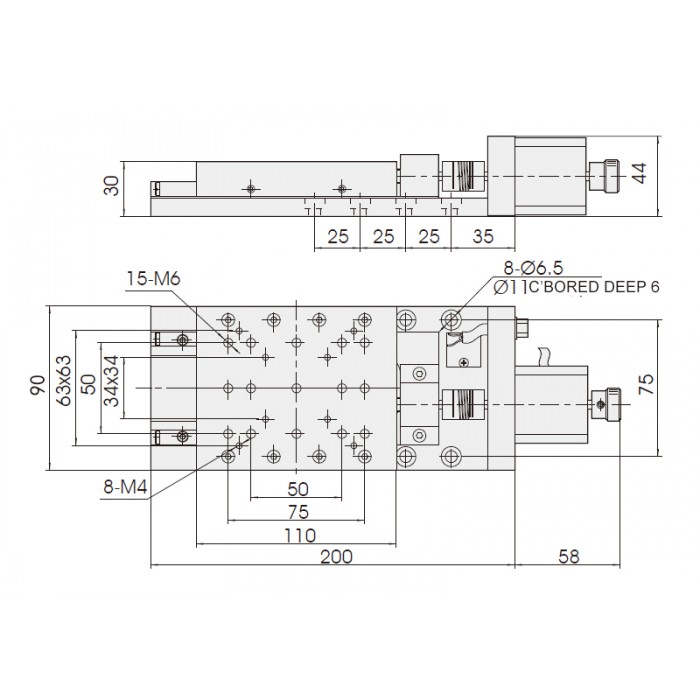

3D drawing STEP format
