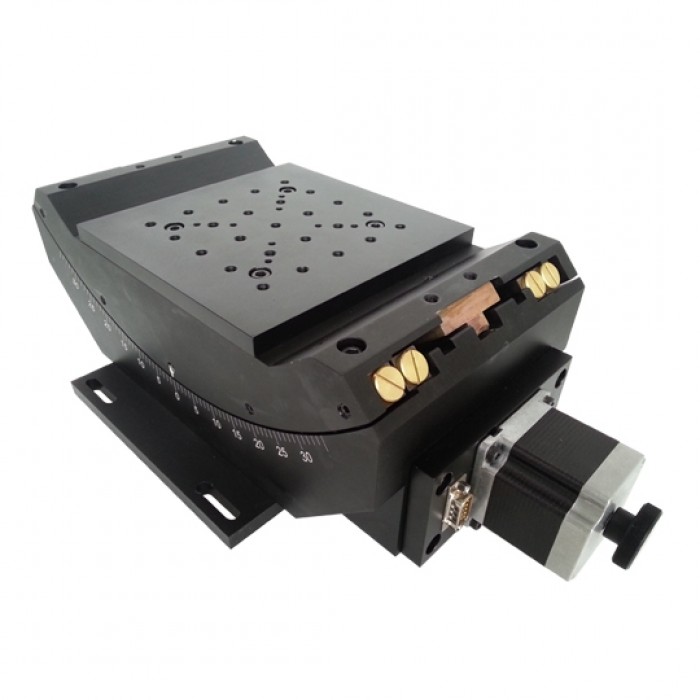

Item Number: SD04GA30

Structure

Travel Range: ±30°

Platform: 160mm × 160mm (6.3" x 6.3")

Drive Mechanism:Worm Gear

Travel Guide: Crossed Roller Bearing

Worm Gear Ratio: 400:1

Point of Rotation: 139mm (5.47")

Stepper Motor: NEMA 23 with 2-Phases & 1.8° of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 30.0kg (66lbs)

Weight: 14kg (30.8lbs)

Accuracy

Design Resolution: 2”

Max Velocity: 10°/sec

Bi-directional Repeatability: ±4"

Absolute On-Axis Accuracy: ±9"

Backlash: ±4"

Optional Accessories: Servo Motor (-S)

Limit Switches are exist.

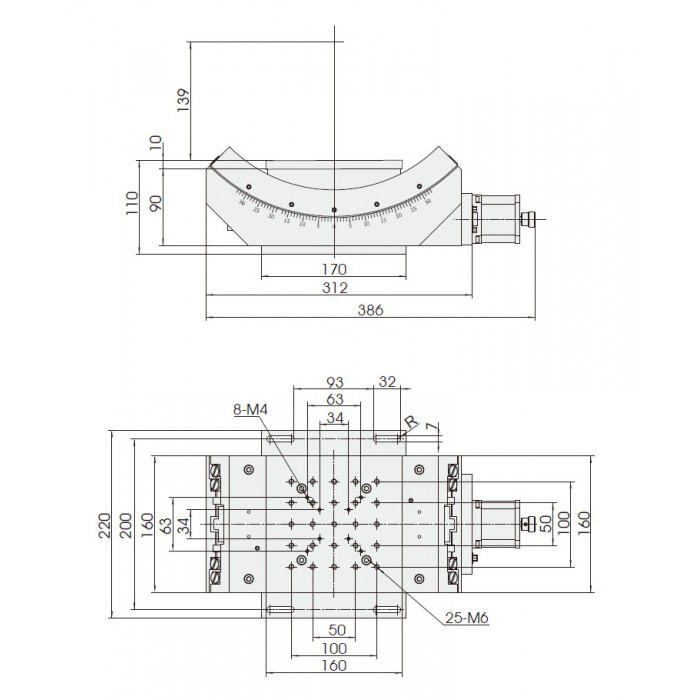

 3D drawing STEP format
