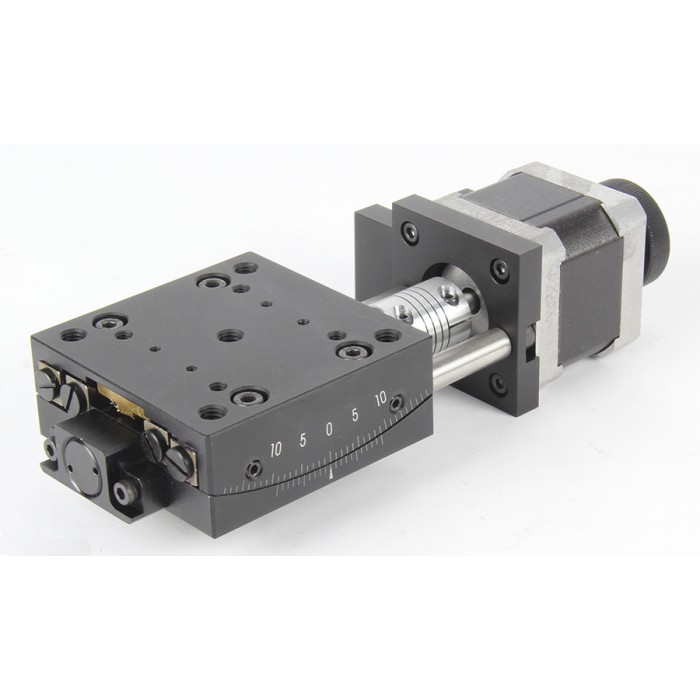

Item Number: SD01GA10

Structure

Travel Range: ±10°

Platform: 65mm × 65mm (2.56" x 2.56")

Drive Mechanism:Worm Gear

Travel Guide: Crossed Roller Bearing

Worm Gear Ratio: 352:1

Point of Rotation: 75mm (0.95")

Stepper Motor: NEMA 17 with 2-Phases & 0.9° of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 5.0kg (11.02lbs)

Weight: 0.57kg (1.25lbs)

Accuracy

Design Resolution: 1”

Max Velocity: 5°/sec

Bi-directional Repeatability: ±4"

Absolute On-Axis Accuracy: ±9"

Backlash: ±4"

Optional Accessories: Servo Motor (-S)

Limit Switches are exist.

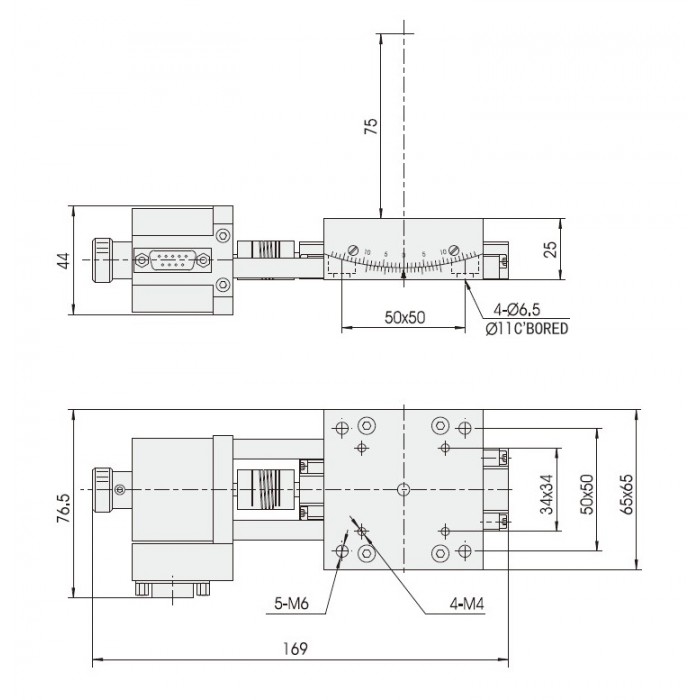

3D drawing STEP format
