Item Number: SD07TA300H

Structure

Travel Range: 300mm (11.82”)

Platform: 160mm (6.3”) x 160mm (6.3”)

Bearing Construction: Recalculating Ball Screw (5mm of leading)

Travel Guide: High Precise Linear Slide Guide

Stepper Motor: NEMA 17 with 2 Phases & 1.8°of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: Horizontally 40kg (88lbs) Vertically 10kg (22lbs)

Weight: 7.5kg (16.5lbs)

Accuracy

Design Resolution: 1.5um

Max Velocity: 40mm/sec

Bi-directional Repeatability: 3um

Absolute On-Axis Accuracy: 5um

Straightness: 6um

Degree of Parallelization: 15um

Pitching: 50”

Yawing: 25”

Backlash: 5um

Optional Accessories: Servo Motor (-S); Grating Scale (-G); Dust Proof Cover (-F)

Limit Switches and Home Switches are exist.

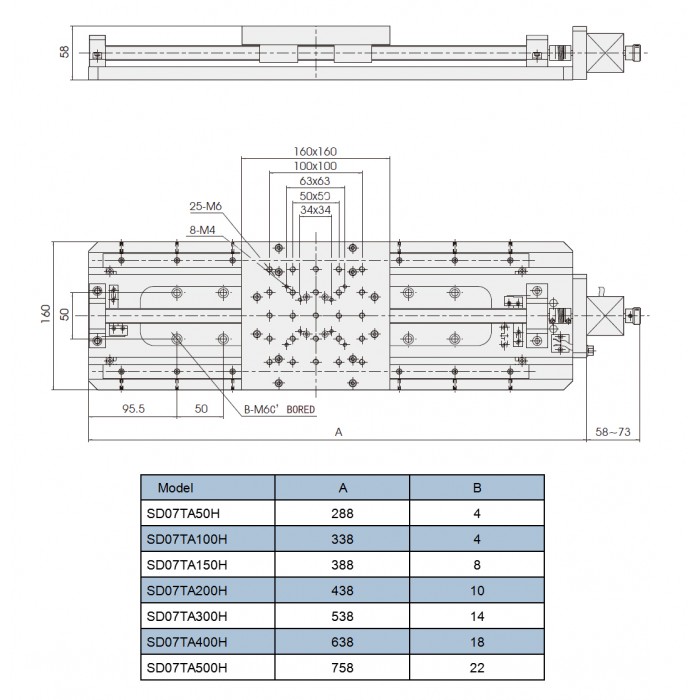

3D drawing STEP format
