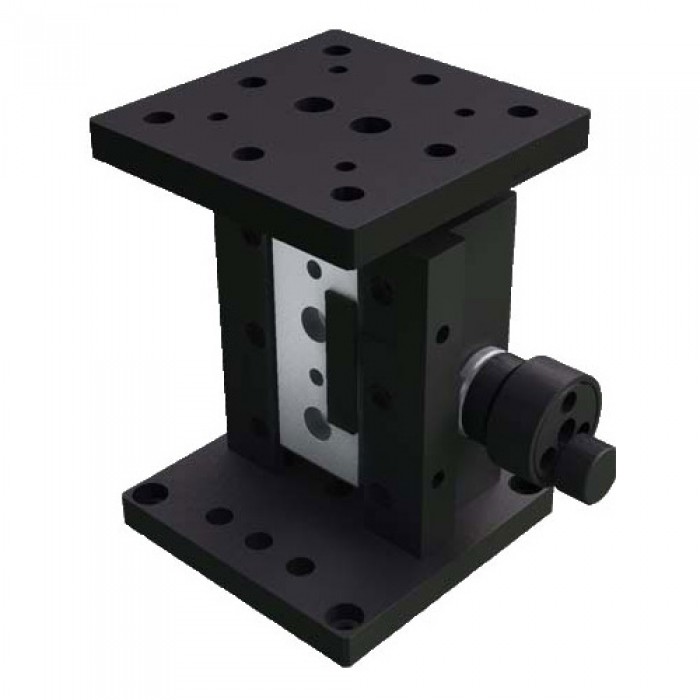

Precision Manual Vertical Positioners

Specifications

  Item Number: SD06VM25

  Travel Range: 25mm (0.98")

  Platform: 70mm x 70mm (2.76" x 2.76")

  Actuator Type: Bevel Wheel & Rack

  Travel Guide: Crossed Roller Bearing

    Mini Readout: 0.01mm

  Max Load Capacity: 5.0kg (11.0lbs)

  Weight: 0.6kg (1.32lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
