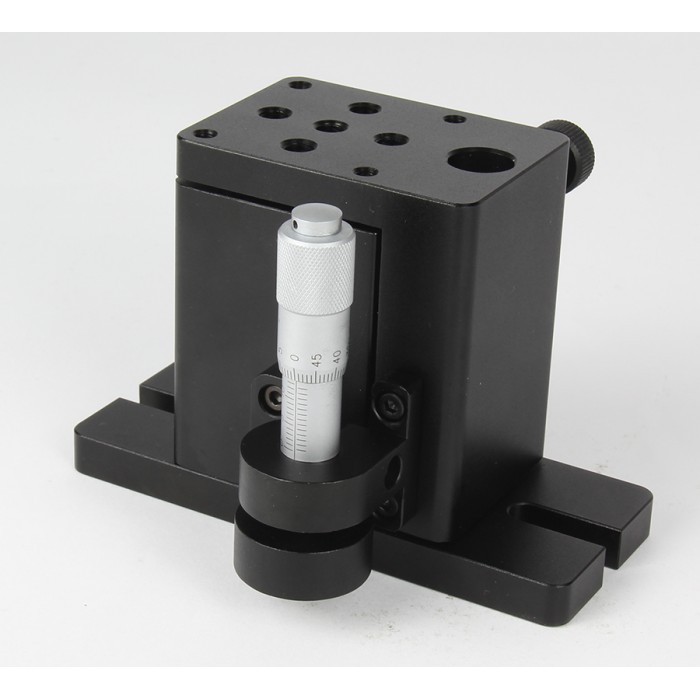

Precision Manual Vertical Positioners

Specifications

  Item Number: SD05VM13

  Travel Range: 13mm (0.51")

  Platform: 62mm x 44mm (1.73" x 2.44")

  Actuator Type: Micrometer Head

  Adjustment: 0.5mm/Revolution, 0.01mm/Scale

  Travel Guide: Linear Bearing

  Max Load Capacity: 2.0kg (4.4lbs)

  Weight: 0.6kg (1.32lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
