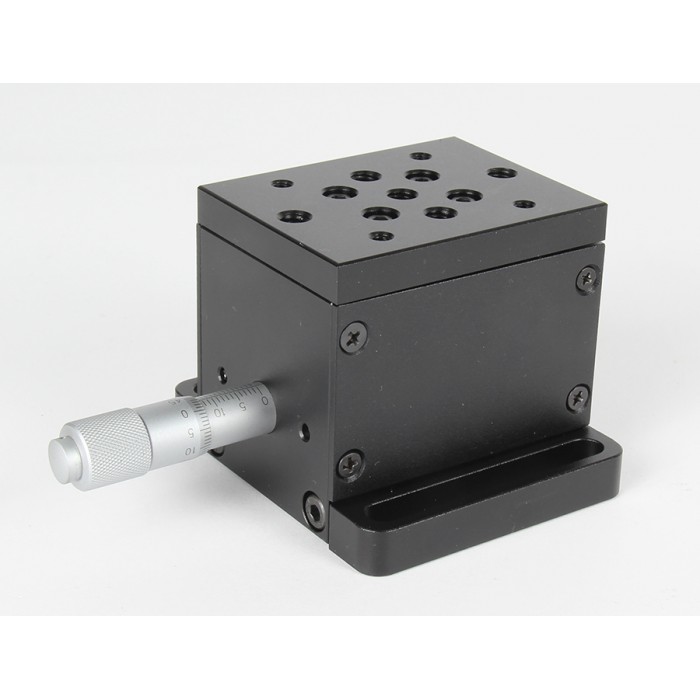

Precision Vertical Positioners

Specifications

  Item Number: SD01VM5

  Travel Range: 5mm (0.2")

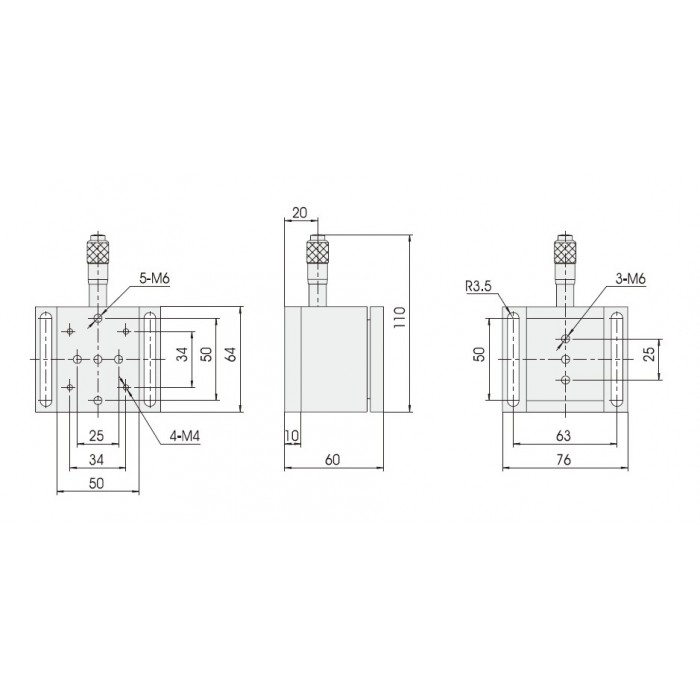

  Platform: 50mm x 64mm (1.97" x 2.52")

  Actuator Type: Micrometer Head

  Adjustment: 0.5mm/Revolution, 0.01mm/Scale

  Travel Guide: Precision V-Groove & Crossed Roller Bearing

  Max Load Capacity: 10.0kg (22.0lbs)

  Weight: 0.6kg (1.32lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
