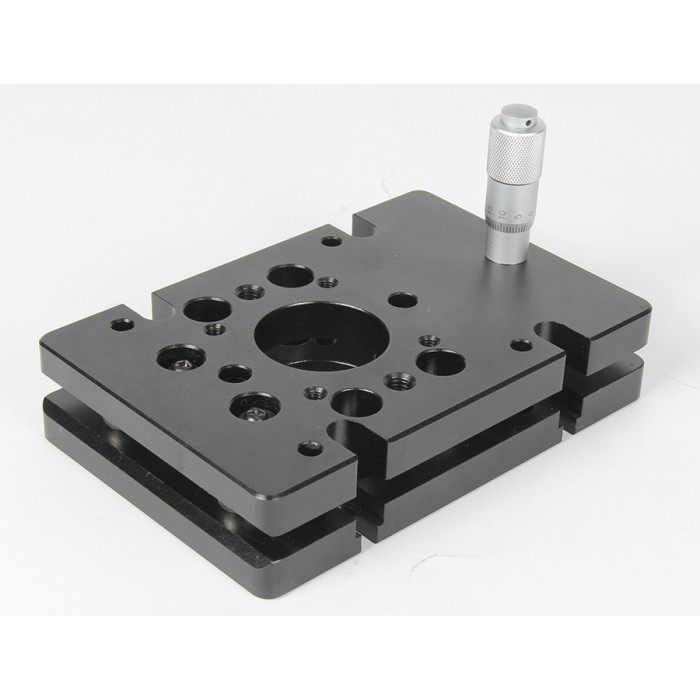

One-Axis Tilt with One Micrometer

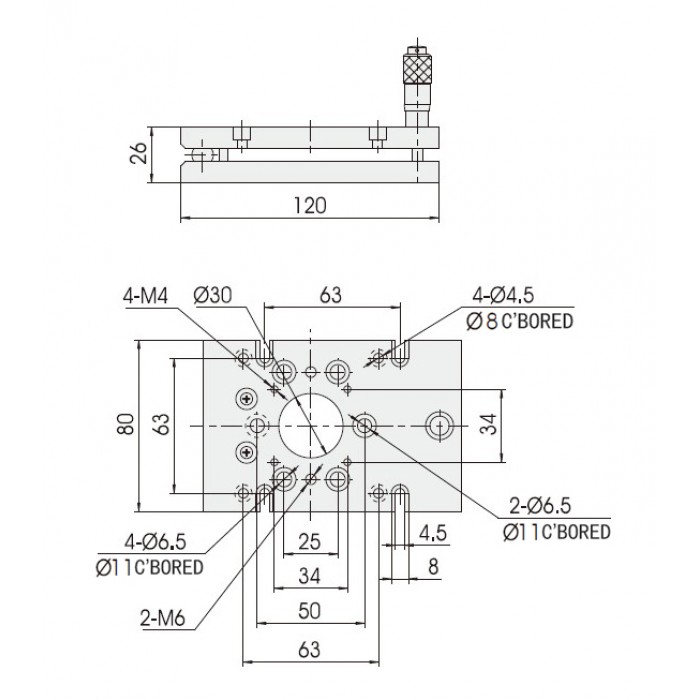

Structure Specifications

  Item Number: SD01QM3

  Platform: 120mm × 80mm (4.72" x 3.15")

    Clear Aperture: Ø30mm (Ø1.17")

  Tilt Range: ±3° in θx Adjustment

  Sensitivity (Standard Micrometers): 5’

  Drive Mechanism: Micrometer Head

  Max Load Capacity: 10.0kg (22.0lbs)

  Weight: 0.5kg (1.10lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
