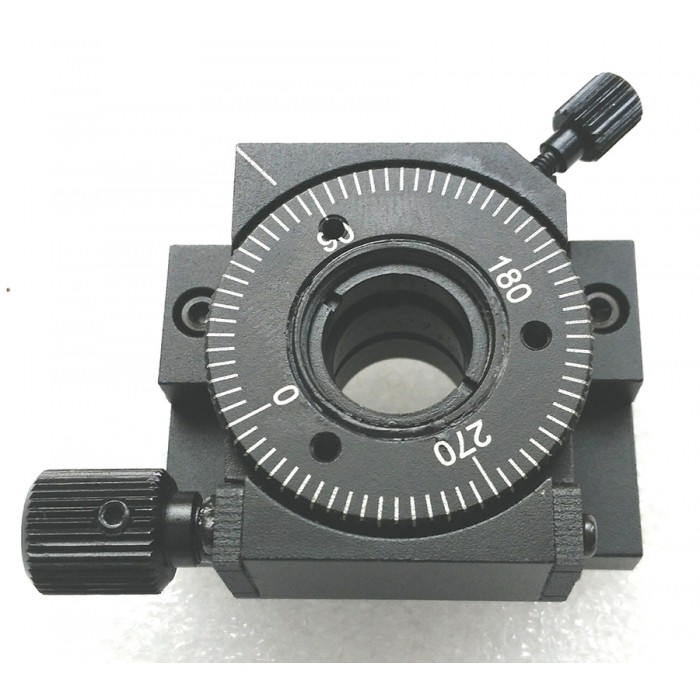

360° Continuous Rotation Stage

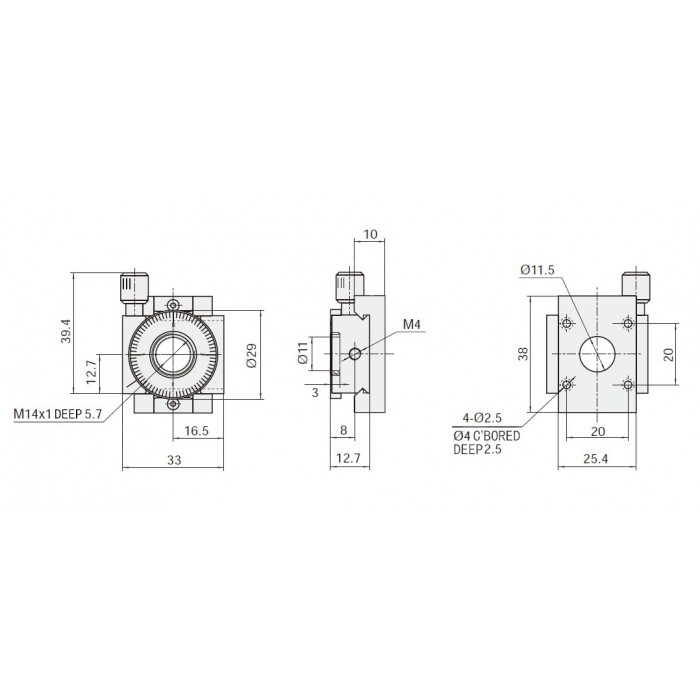

Specifications

  Item Number: SD05RM29

  Platform: Ø29mm (Ø1.13")

  Adjustment:
• 360° Continuous Motion
• Radial Scale with Marking Every 5°

  Clear Aperture: M14x1.0, Ø29  mm (Ø1") of Mirror Available

  Actuator Type: Friction Transmission

  Max Load Capacity (Horizontal): 0.5.0kg (1.10lbs)

  Max Load Capacity (Vertical): 0.5kg (1.10lbs)

  Weight: 0.15kg (0.33lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
