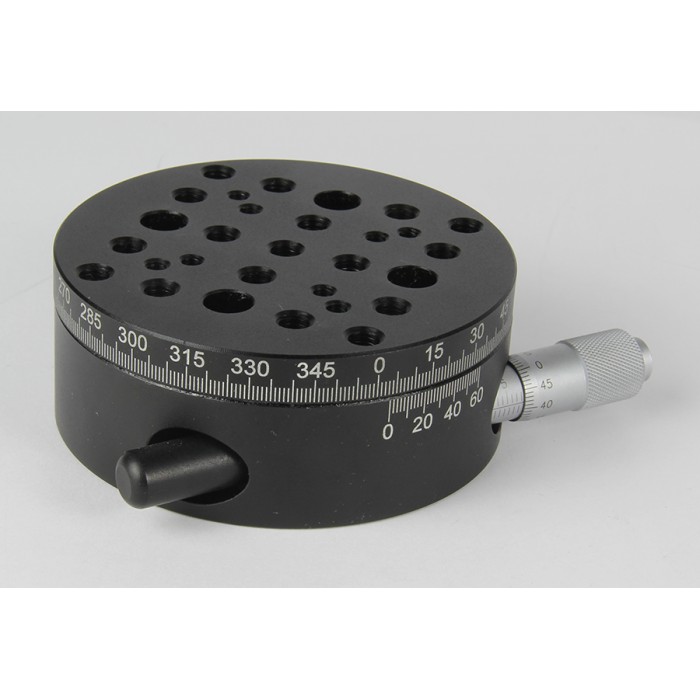

Micrometer Head Precision Rotation Stage

Specifications

  Item Number: WN01RM82

  Platform: Ø82mm (Ø3.23")

  Actuator Type: Micrometer Head in Side

  Adjustment:
   • 360° Coarse Rotation
   • When Locked, Screw-Driven ±10° of Fine Rotation

  Min Readout: 2'

  Max Load Capacity (Horizontal): 5.0kg (11.02lbs)

  Max Load Capacity (Vertical): 2.0kg (4.40lbs)

  Weight: 0.5kg (1.10lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
