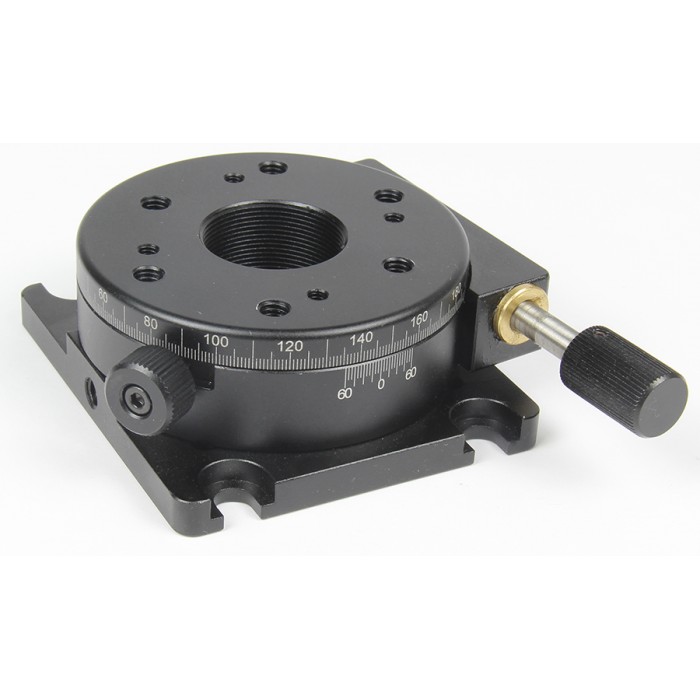

Precision Rotation Stage

Specifications

  Item Number: SD02RM73

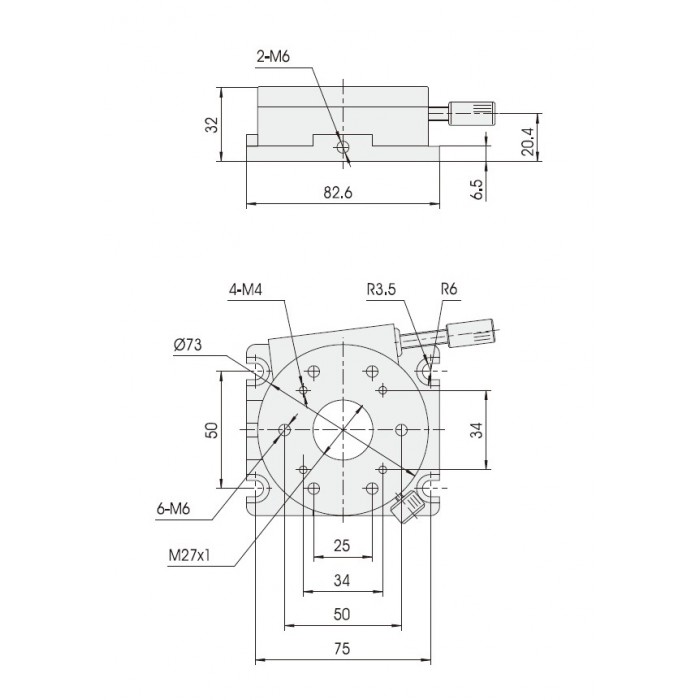

  Platform: Ø73mm (Ø2.87")

  Clear Aperture: M27x1.0, Ø25.4mm (Ø1") of Mirror Available

  Actuator Type: Fine Adjustment Screws in Side

  Adjustment:
    • 360° Coarse Rotation
    • When Locked, Screw-Driven ±3° of Fine Rotation

  Mini Readout: 5'

  Max Load Capacity (Horizontal): 5.0kg (11.02lbs)

  Max Load Capacity (Vertical): 1.0kg (2.20lbs)

  Weight: 0.35kg (0.77lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
