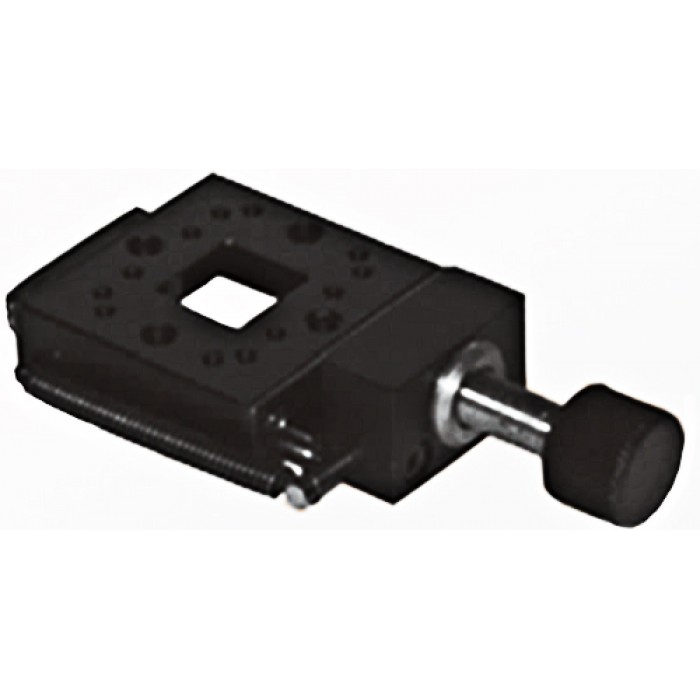

13mm Travel, 12mm x 12mm Aperture, Miniature Manual Linear Stage

Specifications

  Item Number: SD11TM13

  Travel Range: 13mm (0.5")

  Platform: 110mm × 80mm (4.33” ×  3.15")

    Aperture: 12mm × 12mm (0.47" × 0.47")

  Actuator Type: Fine Adjustment Screw in Center

  Accuracy: 0.25mm (100TPI)

  Travel Guide: Precision Linear Slide Guide

  Max Load Capacity (Horizontal): 1 kg (2.2lbs)

  Weight: 0.4kg (0.88lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
