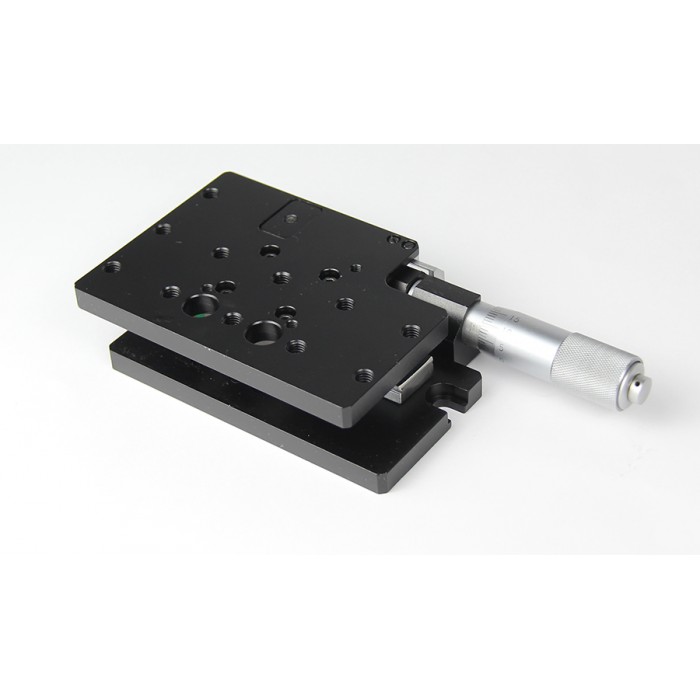

25mm (1”) Travel, Miniature Manual Linear Stage

Specifications

  Item Number: SD10TM25B

  Travel Range: 25mm (0.98")

  Platform: 110mm × 80mm (4.33” x 3.15")

  Actuator Type: Micrometer Head in Side

  Accuracy: 0.002mm

    Readout: 0.01mm

  Travel Guide: Precision Linear Slide Guide

  Max Load Capacity (Horizontal): 20 kg (44.09lbs)

  Max Load Capacity (Vertical): 5kg (11lbs)

  Weight: 0.4kg (0.88lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
