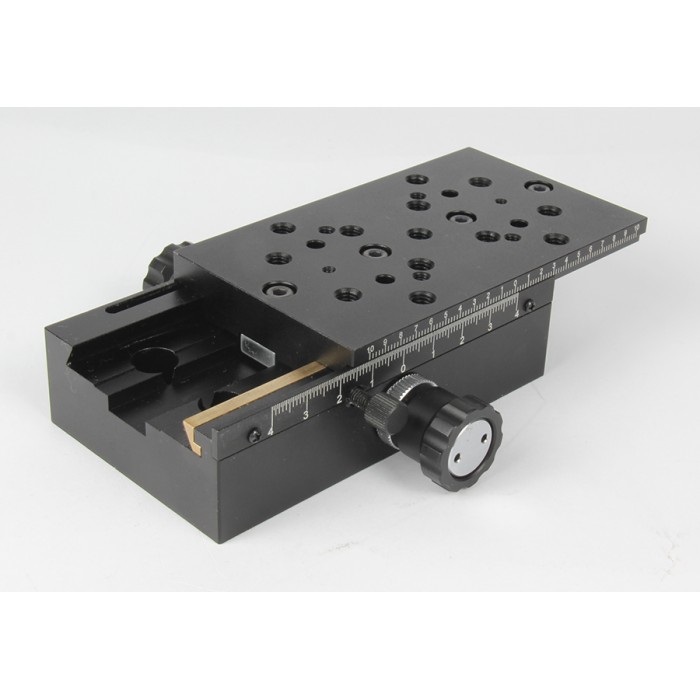

Low-Profile Dovetail Linear Stages, 75mm (2.9") Travel

Specifications

  Item Number: SD09TM75

  Travel Range: 75mm (2.92")

  Platform: 65mm × 110mm (2.53" x 4.29")

  Actuator Type: Bevel Wheel & Rack

  Travel Guide: Dovetail

     Accuracy: 0.01mm

     Readout: 0.02mm

  Max Load Capacity (Horizontal): 20.0kg (44.10lbs)

  Max Load Capacity (Vertical): 2.0kg (4.41lbs)

  Weight: 0.8kg (1.76lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
