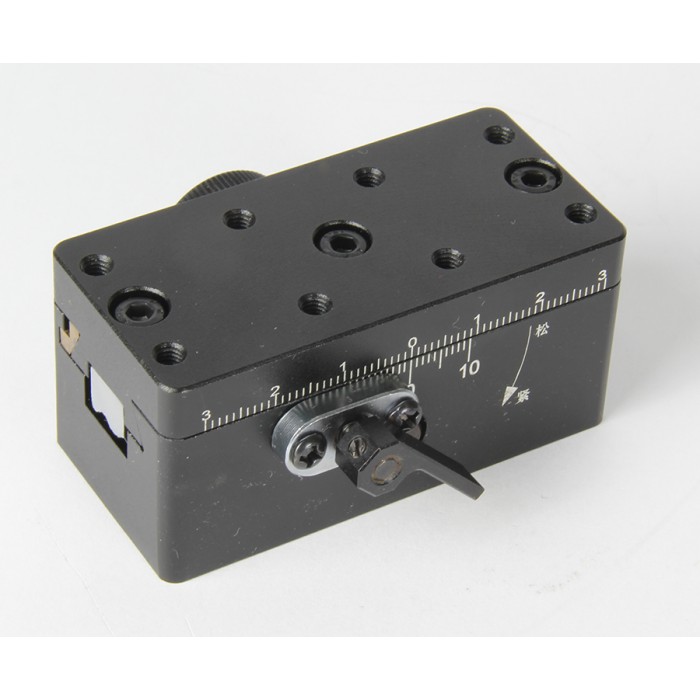

Low-Profile Dovetail Linear Stages, 50mm (2") Travel

Specifications

  Item Number: SD09TM55

  Travel Range: 50mm (1.97")

  Platform: 70mm × 34mm (2.76" x 1.32")

  Actuator Type: Bevel Wheel & Rack

  Travel Guide: Dovetail

     Accuracy: 0.01mm

     Readout: 0.02mm

  Max Load Capacity (Horizontal): 20.0kg (44.10lbs)

  Max Load Capacity (Vertical): 2.0kg (4.41lbs)

  Weight: 0.8kg (1.76lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
