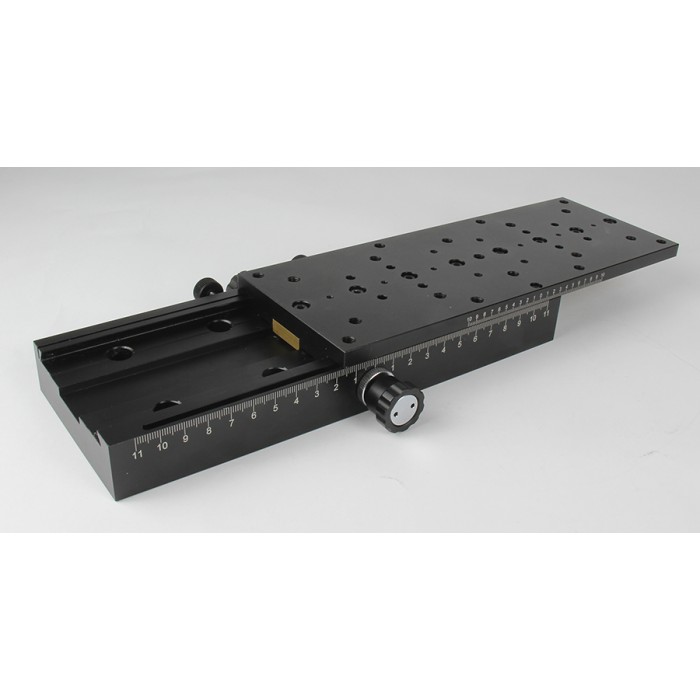

Low-Profile Dovetail Linear Stages, 200mm (7.8") Travel

Specifications

  Item Number: SD09TM200

  Travel Range: 200mm (7.8")

  Platform: 90mm × 240mm (3.51" x 9.36")

  Actuator Type: Bevel Wheel & Rack

  Travel Guide: Dovetail

    Accuracy: 0.01mm

    Readout: 0.02mm

  Max Load Capacity (Horizontal): 20.0kg (44.10lbs)

  Max Load Capacity (Vertical): 2.0kg (4.41lbs)

  Weight: 2.3kg (5.06lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
