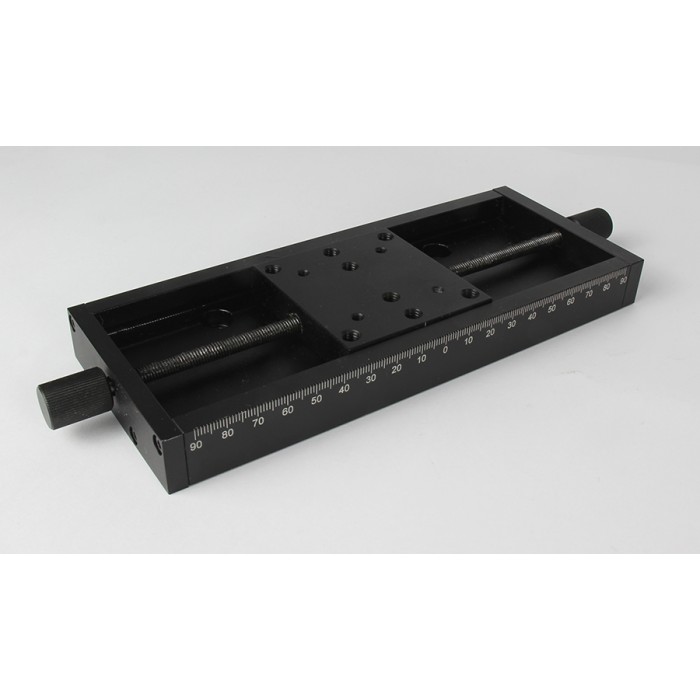

Low-Profile Dovetail Linear Stages, 125mm Travel

Specifications

  Item Number: SD08TM125

  Travel Range: 125mm (4.92")

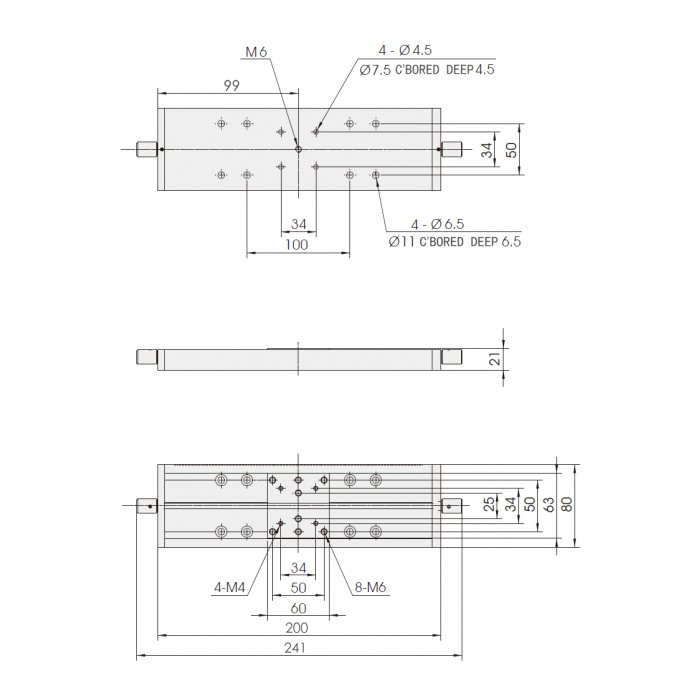

  Platform: 63mm × 60mm (2.48" x 2.36")

  Actuator Type: Bevel Wheel & Rack

  Travel Guide: Dovetail

    Accuracy: 0.05mm

  Max Load Capacity (Horizontal): 20.0kg (44lbs)

  Max Load Capacity (Vertical): 5.0kg (11.0lbs)

  Weight: 0.65kg (1.43lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
