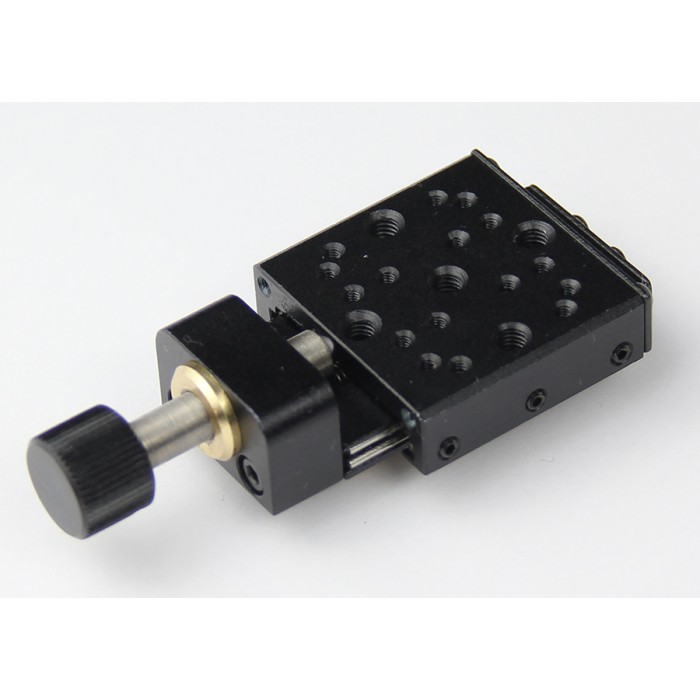

Miniature Ball Bearing Linear Stages, 13mm (1/2”) Travel

Specifications

  Item Number: SD05TM13L

  Travel Range: 13mm (0.51")

  Platform: 34mm × 34mm (1.34” x 1.34")

  Actuator Type: Fine Adjustment Screw in Center

  Adjustment: 0.01mm/Readout

  Travel Guide: Ball Bearing

  Max Load Capacity (Horizontal): 1.0kg (2.2lbs)

  Max Load Capacity (Vertical): 0.25kg (0.55lb)

  Weight: 0.05kg (0.12lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
