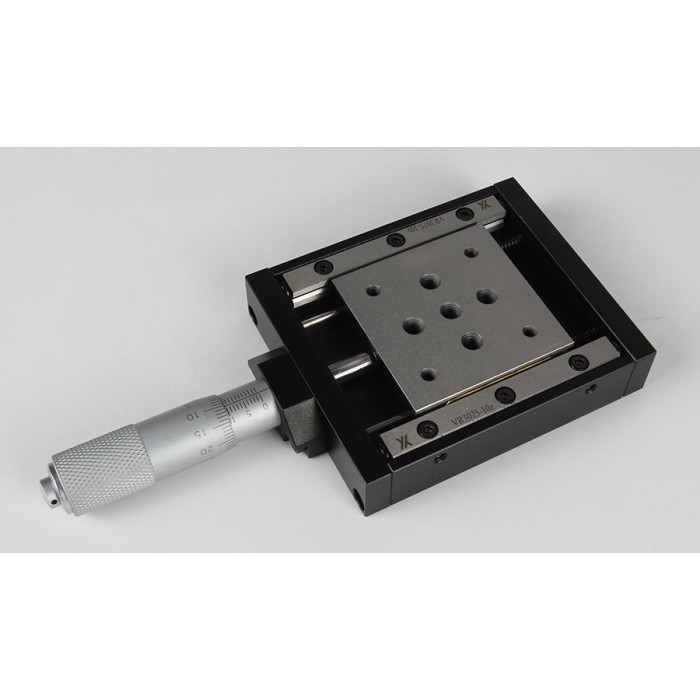

25mm (1”) Travel, Precision Crossed-Roller Bearing Linear Stage

Specifications

  Item Number: SD04TM25H

  Travel Range: 25mm (0.98")

  Platform: 53mm × 53mm (2.09” x 2.09")

  Actuator Type: Micrometer Head in Center

  Adjustment:  0.01mm/Readout

  Travel Guide: Precision V-Groove & Crossed Roller Bearing

  Max Load Capacity (Horizontal): 5.0kg (11lbs)

  Max Load Capacity (Vertical): 2kg (4.41lbs)

  Weight: 0.5kg (1.1lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
