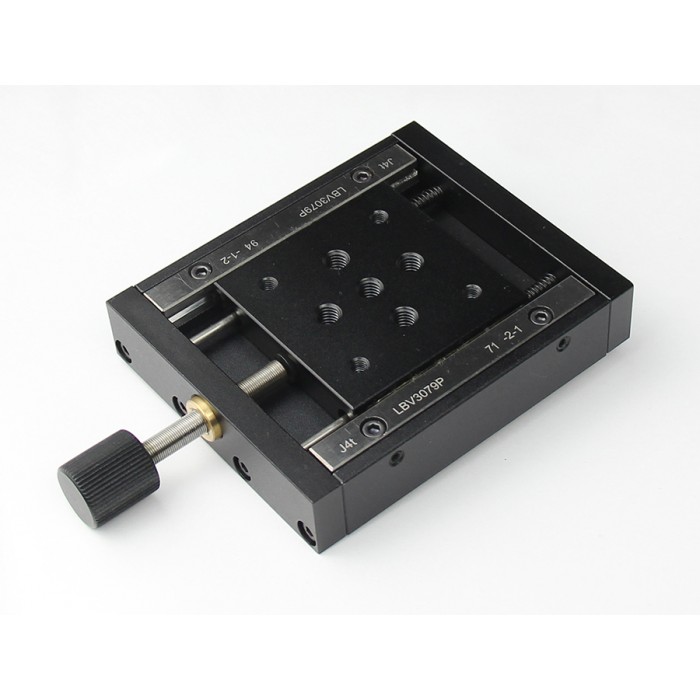

Low-Profile Ball Bearing Linear Stages, 25mm (1”) Travel

Specifications

  Item Number: SD03TM25L

  Travel Range: 25mm (0.98")

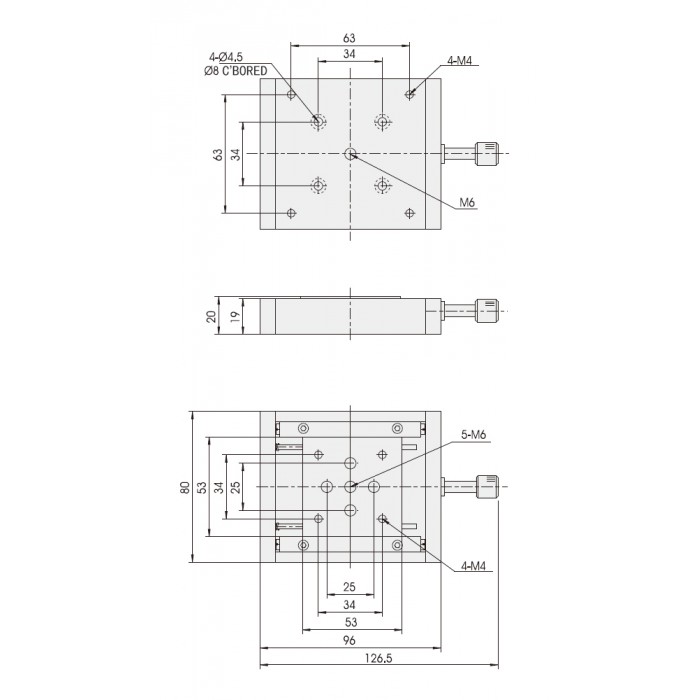

  Platform: 53mm × 53mm (2.09" x 2.09")

  Actuator Type: Fine Adjustment Screw in Center

  Adjustment:  0.25mm/Resolution (100TPI)

  Travel Guide: Ball Bearing

  Max Load Capacity (Horizontal): 3.0kg (6.64lbs)

  Max Load Capacity (Vertical): 0.5kg (1.1lbs)

  Weight:  0.4kg (0.88lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
