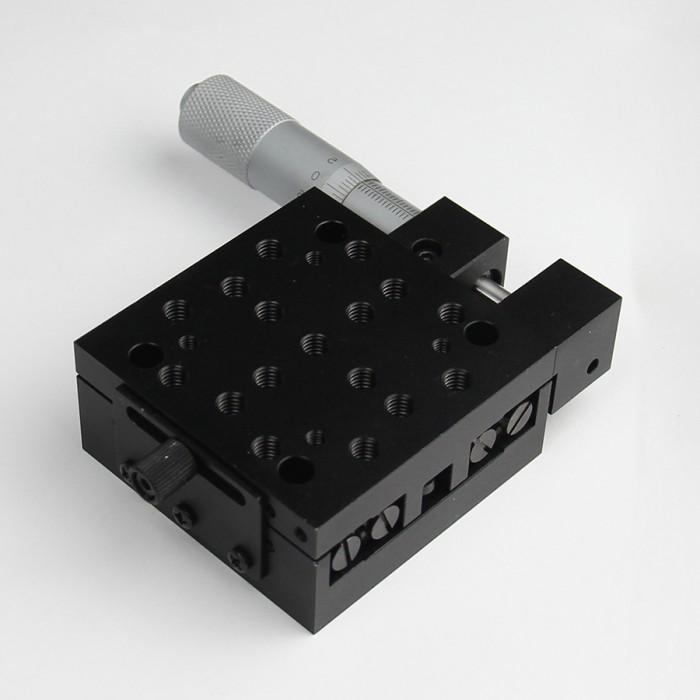

25mm (1”) Travel, Precision Crossed-Roller Bearing Linear Stage

Specifications

  Item Number: SD02TM25H

  Travel Range: 25mm (0.98")

  Platform: 65mm × 65mm (2.56” x 2.56")

  Actuator Type: Micrometer Head in Side

  Adjustment: 0.005mm/Revolution

     Readout: 0.01mm

  Travel Guide: Precision V-Groove & Crossed Roller Bearing

  Max Load Capacity (Horizontal): 5.0kg (11lbs)

  Max Load Capacity (Vertical): 2kg (4.41lbs)

  Weight: 0.45kg (0.99lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
