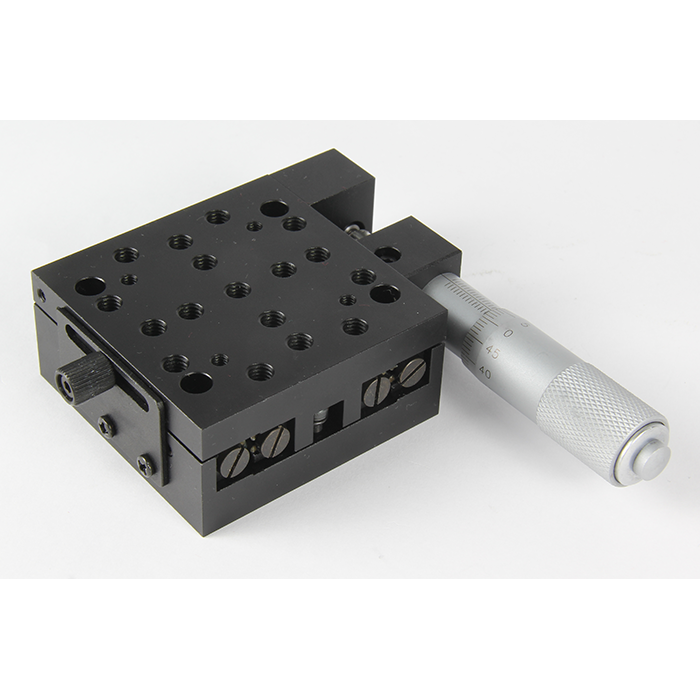

Ball Bearing Linear Stages, 25mm (1”) Travel

Specifications

  Item Number: SD01TM25

  Travel Range: 25mm (0.98")

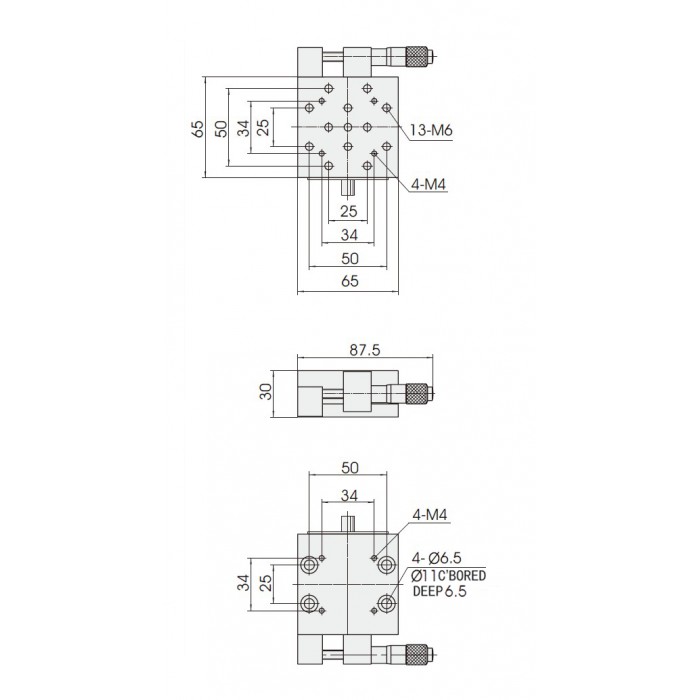

  Platform: 65mm × 65mm (2.56" x 2.56")

  Actuator Type: Micrometer Head in Side

  Adjustment: 0.01mm/Readout

  Travel Guide: Ball Bearing

  Max Load Capacity (Horizontal): 3.0kg (6.6lbs)

  Max Load Capacity (Vertical): 1.0kg (2.2lbs)

  Weight: 0.45kg (0.99lb)

  Material: Aluminum Alloy

  Finish: Black-Anodized
