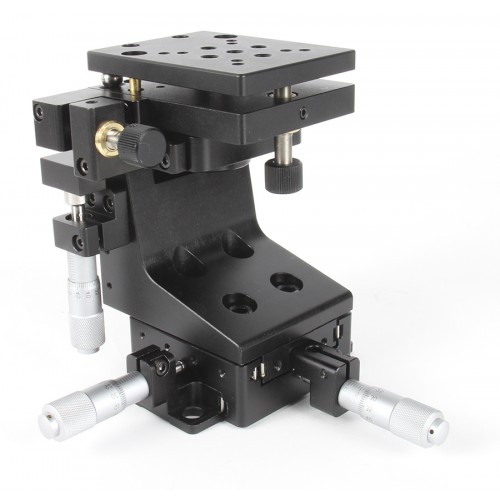

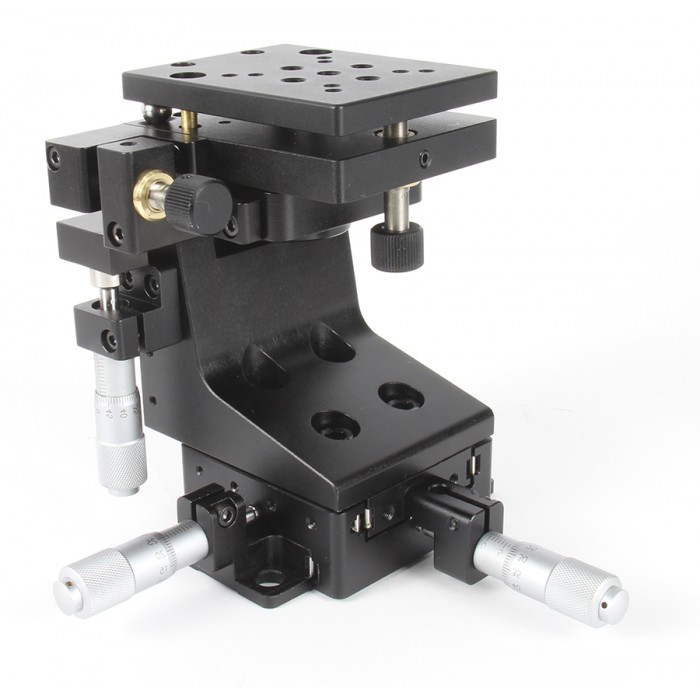

XYZ, Tilt and Rotation Integrated Positioning Stage

Structure Specifications

   Item Number: SD501WMR

   Platform: 74mm × 60.5mm (2.91" x 2.38")

   Travel Range:
    • X, Y & Z: 13mm (0.51")
    • θx, θy: ±5°

   Actuator Type:
    • Micrometer Head in Right Side for X, Y & Z;
    • Fine Adjustment Screws: M6x0.25mm (TPI 100)

   Adjustment: 0.5mm/Revolution, 0.01mm/Scale

   Travel Guide: Ball Bearing

   Max Load Capacity: 3.0kg (6.61lbs)

   Weight: 1.2kg (2.65lbs)

   Material: Aluminum Alloy

   Finish: Black-Anodized

3D drawing STEP format
