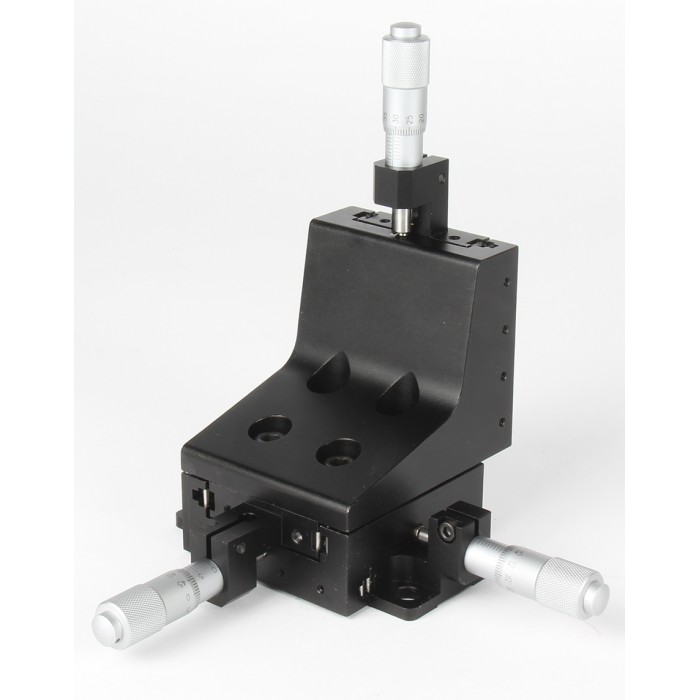

XYZ Integrated Crossed Roller Bearing Linear Stages (3-Axis)

Structure Specifications

   Item Number: SD302WM13HL

   Travel Range: 13mm (0.51")

   Platform: 61.5mm × 61.5mm (2.42" x 2.42")

   Actuator Type: Micrometer Head on Left

   Adjustment: 0.5mm/Revolution, 0.01mm/Scale

   Travel Guide: V-Groove &Crossed Roller Bearing

   Max Load Capacity: 5.0kg (11.02lbs)

   Weight: 1kg (2.2lbs)

   Material: Aluminum Alloy

   Finish: Black-Anodized
