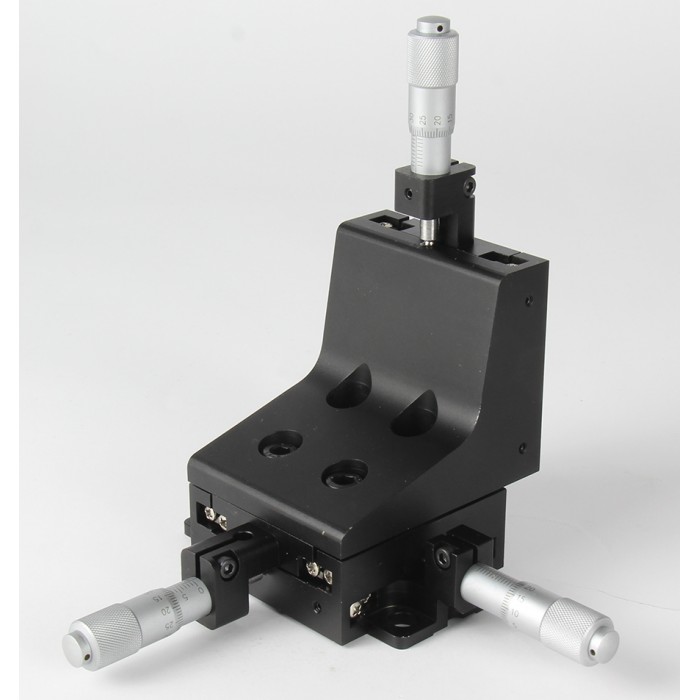

XYZ Low-Profile Integrated Ball Bearing Linear Stage (3-Axis)

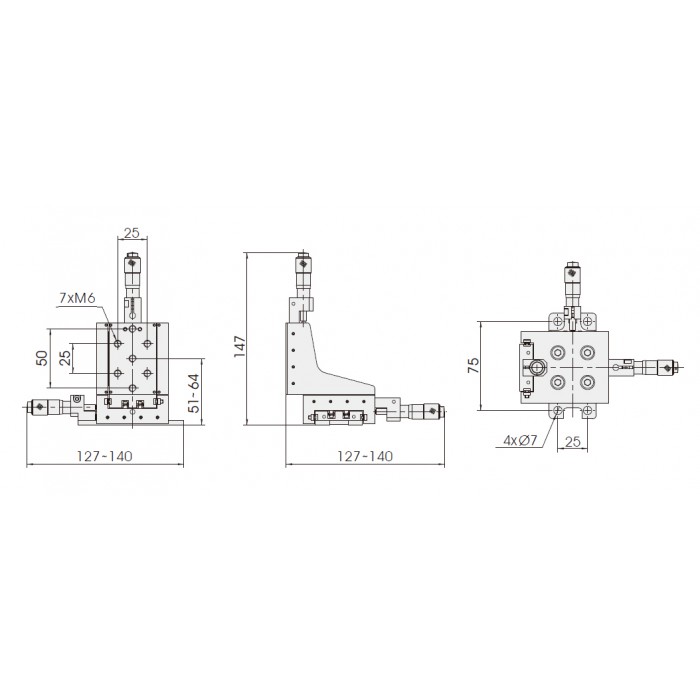

Structure Specifications

- Item Number: SD301WM13L

- Travel Range: 13mm (0.51")

- Platform: 61.5mm × 61.5mm (2.42" x 2.42")

- Actuator Type: Micrometer Head on Left

- Travel Guide: Ball Bearing

- Max Load Capacity: 2.5kg (5.5lbs)

- Weight: 0.9kg (1.98lbs)

- Material: Aluminum Alloy

- Finish: Black-Anodized
