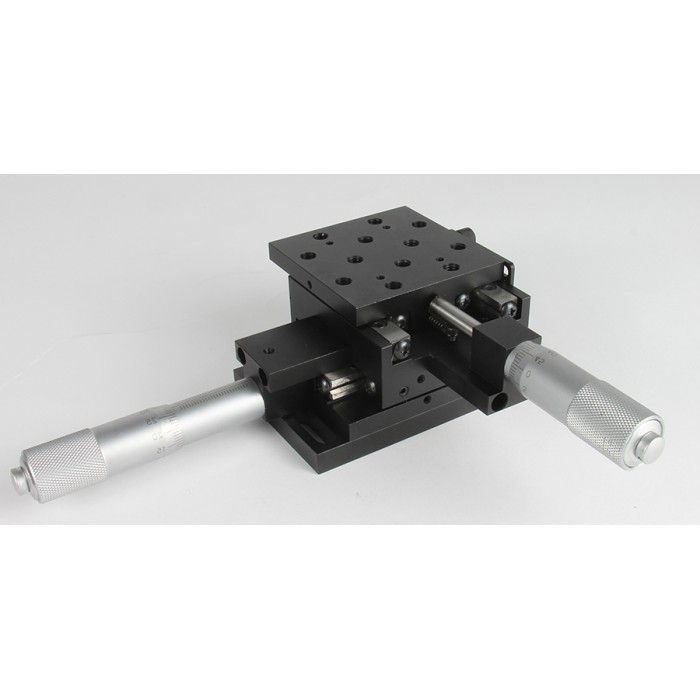

XY Integrated Crossed Roller Bearing Linear Stages

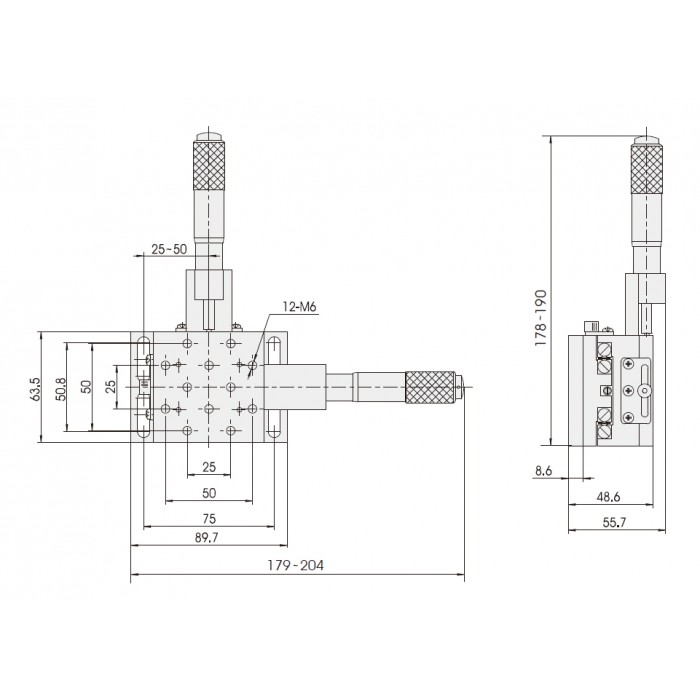

Structure Specifications

   Item Number: SD203WM25HR

   Travel Range: 25mm (0.98")

   Platform: 63.5mm × 63.5mm (2.5" x 2.5")

   Actuator Type: Micrometer Head on Right

   Travel Guide: Crossed Roller Bearing

   Max Load Capacity: 10.0kg (22.0lbs)

   Weight: 0.6kg (1.32lbs)

   Material: Aluminum Alloy

   Finish: Black-Anodized
