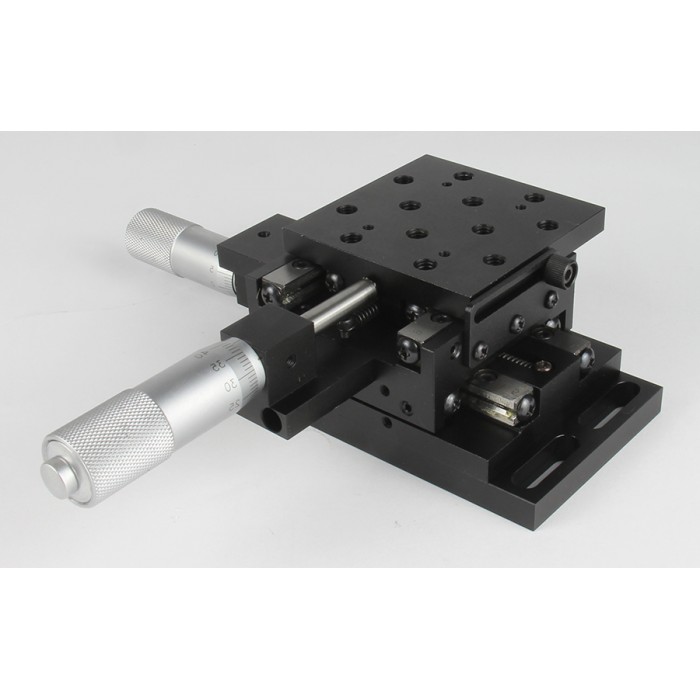

XY Integrated Crossed Roller Bearing Linear Stages

Structure Specifications

   Item Number: SD202WM13HR

   Travel Range: 13mm (0.51")

   Platform: 60.5mm × 60.5mm (2.38" x 2.38")

   Actuator Type: Micrometer Head on Right

   Travel Guide: V-Groove &Crossed Roller Bearing

   Max Load Capacity: 10.0kg (22.0lbs)

   Weight: 0.5kg (1.1lbs)

   Material: Aluminum Alloy

   Finish: Black-Anodized
