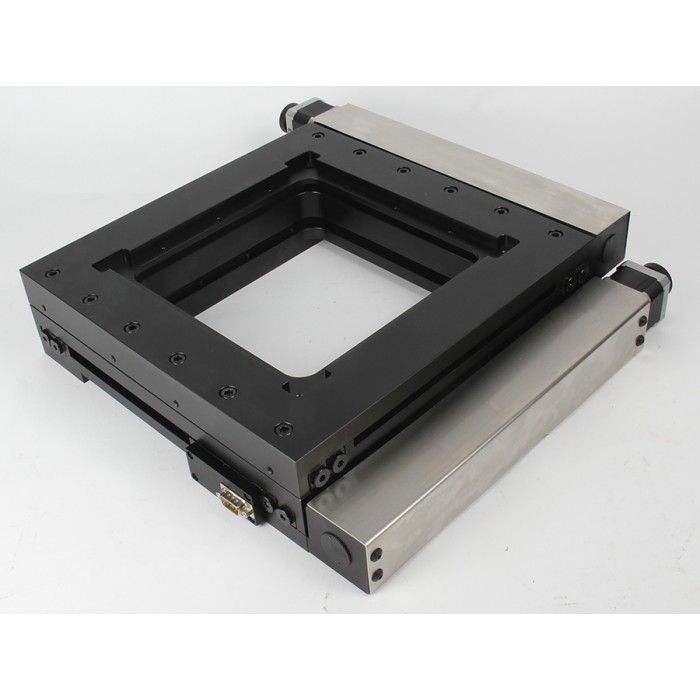

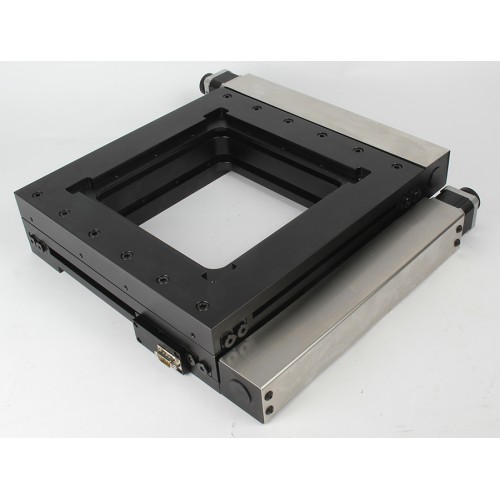

Item Number: SD04WA100x100

Structure

Travel Range (X & Y): 100mm (3.94”)

Platform: 300mm (11.92”) x 300(11.92”)

Min Aperture: 138mm (5.43”) x 138mm (5.43”)

Bearing Construction: High Precise Ball Screw (4mm of leading)

Travel Guide: V-Groove & Crossed Roller Bearing

Stepper Motor: NEMA 17 with 2-Phases & 0.9° of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 20kg (44lbs)

Weight: 13kg (28.6lbs)

Accuracy

Design Resolution: 1.25um

Max Velocity: 40mm/sec

Bi-directional Repeatability: 5um

Absolute On-Axis Accuracy: 8um

Straightness: 5um

Degree of Parallelization: 15um

Pitching: 50”

Yawing: 25”

Backlash: 2um

Optional Accessories: Grating Scales (-G); Servo Motor (-S)

Limit Switches and Home Switches are exist.

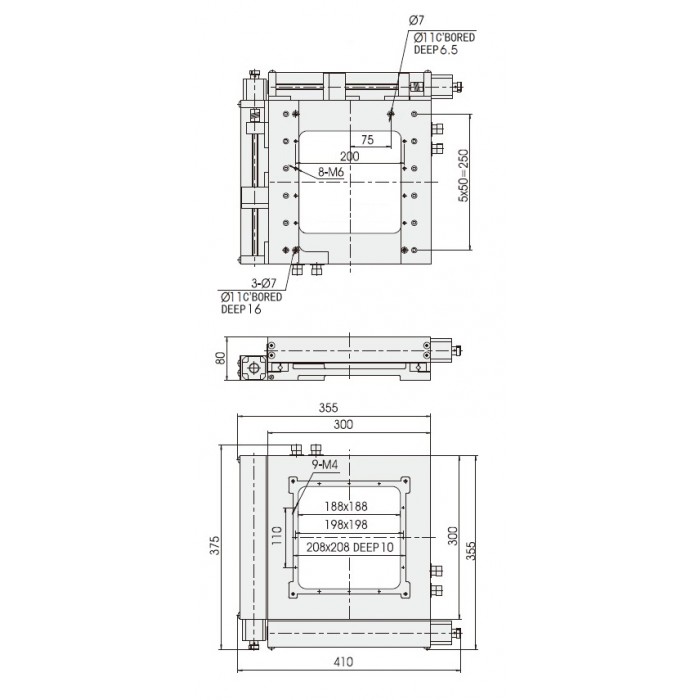

 3D drawing STEP format
