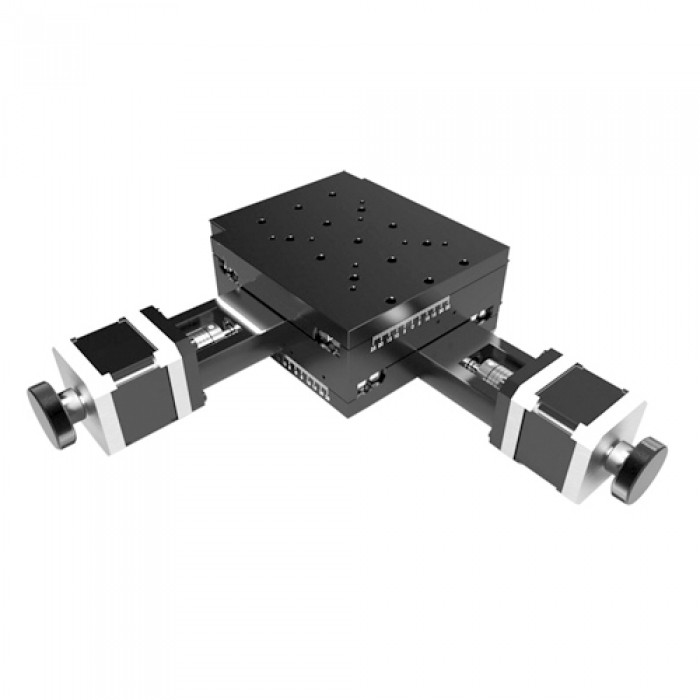

Item Number: SD03WA50x50

Structure

Travel Range (X & Y): 50mm (1.95”)

Platform: 110mm (4.29”) x 110(4.29”)

Bearing Construction: Grinding Screw (1mm of leading)

Travel Guide: V-Groove & Crossed Roller Bearing

Stepper Motor (1.8°):

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 30kg (66lbs)

      Weight: 2.8kg (6.16lbs)

Accuracy

Design Resolution: 1um

Max Velocity: 10mm/sec

Bi-directional Repeatability: 3um

Absolute On-Axis Accuracy: 5um

Straightness: 0.02mm

Degree of Parallelization: 0.02mm

Pitching: 50”

Yawing: 25”

Backlash: 2um

Optional Accessories: Grating Scales (-G); Servo Motor (-S)

Limit Switches and Home Switches are exist.

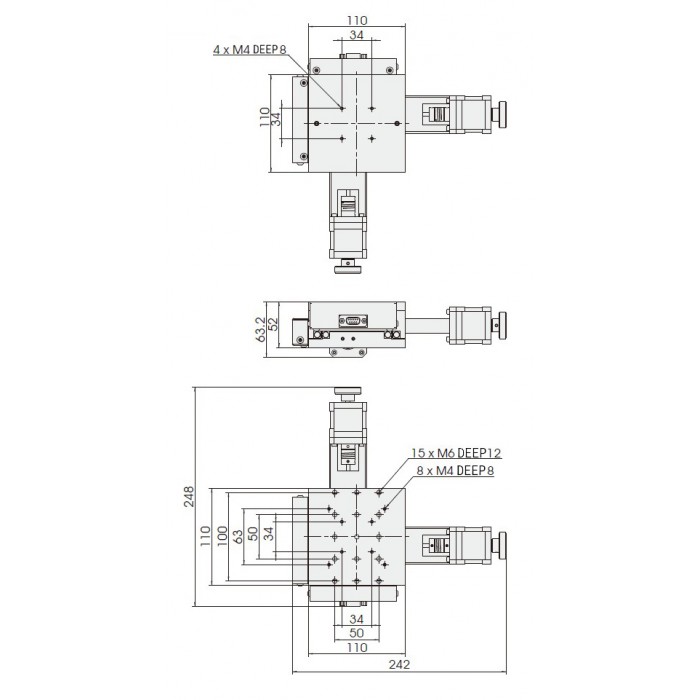

3D drawing STEP format
