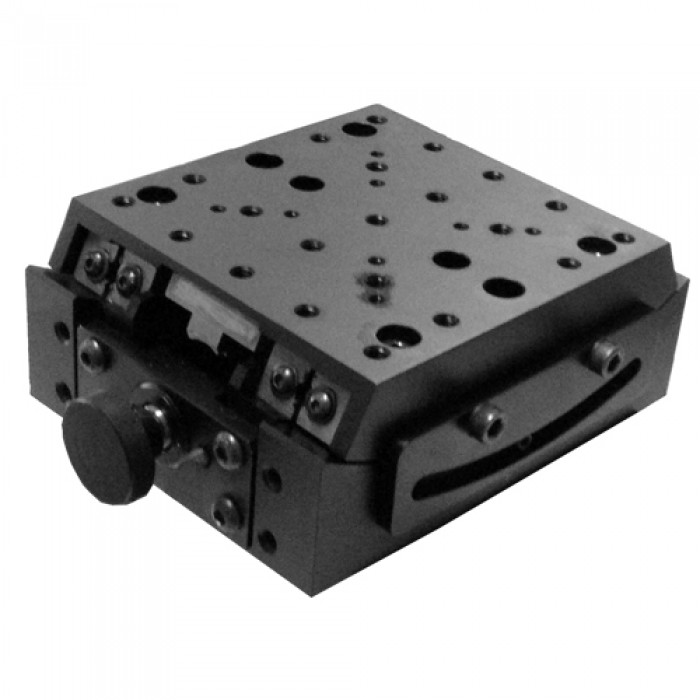

High-Load Ball Bearing Goniometric Stage

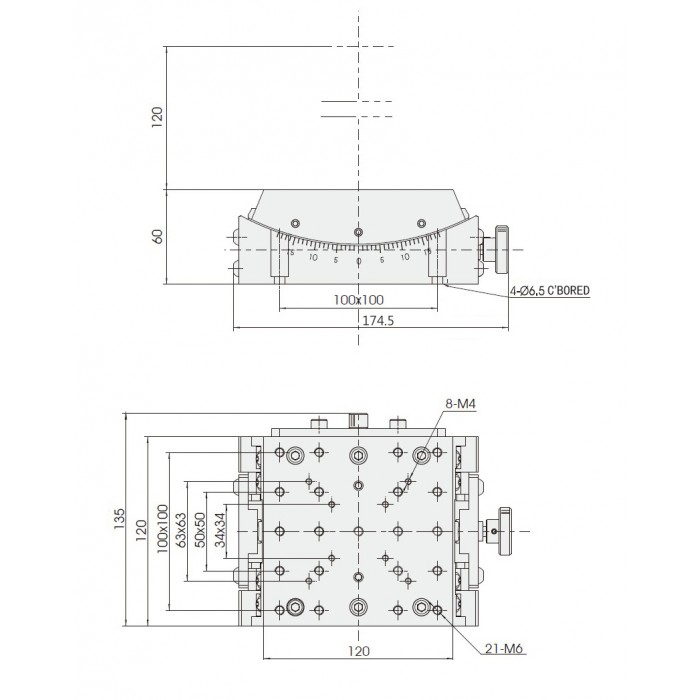

Structure Specifications

Item Number: SD03GM15

Rotation Range: ±15°

Platform: 120mm × 120mm (4.72" x 4.72")

Point of Rotation: 120mm (4.72") ±0.2mm/0.0079"

Mini Readout: 0.1°

Drive Mechanism: Worm Gear

Travel Guide: Ball Bearing

Max Load Capacity: 40kg (88lbs)

Weight: 3.3kg (7.26lbs)

Material: Aluminum Alloy

Finish: Black-Anodized
