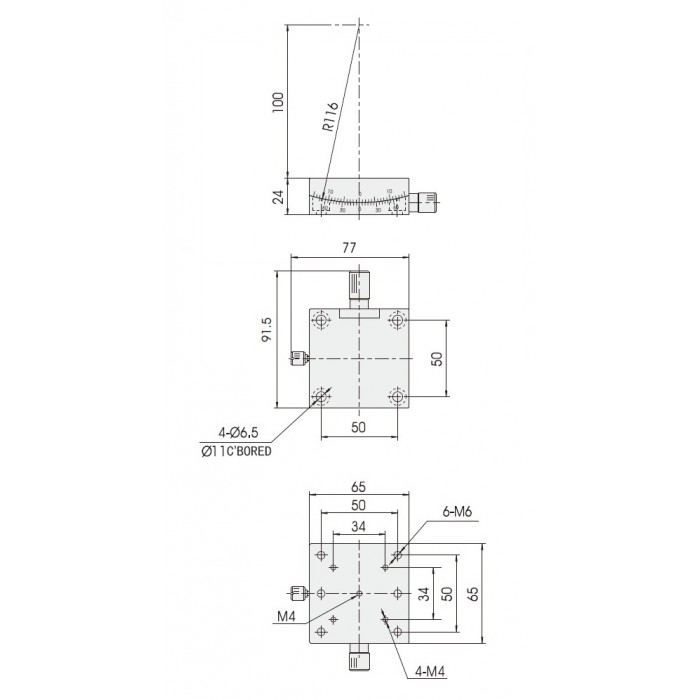

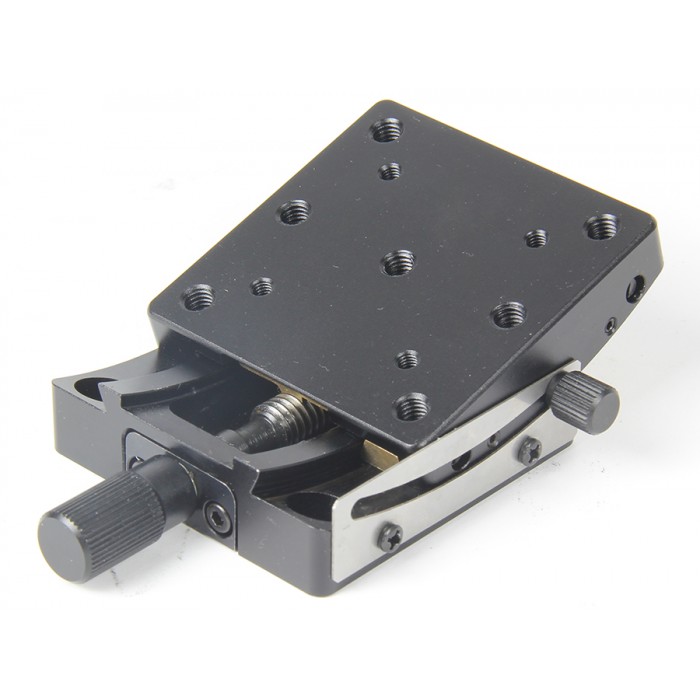

Low-Profile Goniometric Stage in ±10° Range

Structure Specifications

Item Number: SD01GM10

Rotation Range: ±10°

Platform: 65mm × 65mm (2.56" x 2.56")

Point of Rotation: 100mm (3.94") ±0.2mm/0.0079"

Mini Readout: 5'

Drive Mechanism: Worm Gear

Travel Guide: Dovetail

Max Load Capacity: 2.0kg (4.4lbs)

Weight: 0.31kg (0.68lbs)

Material: Aluminum Alloy

Finish: Black-Anodized
