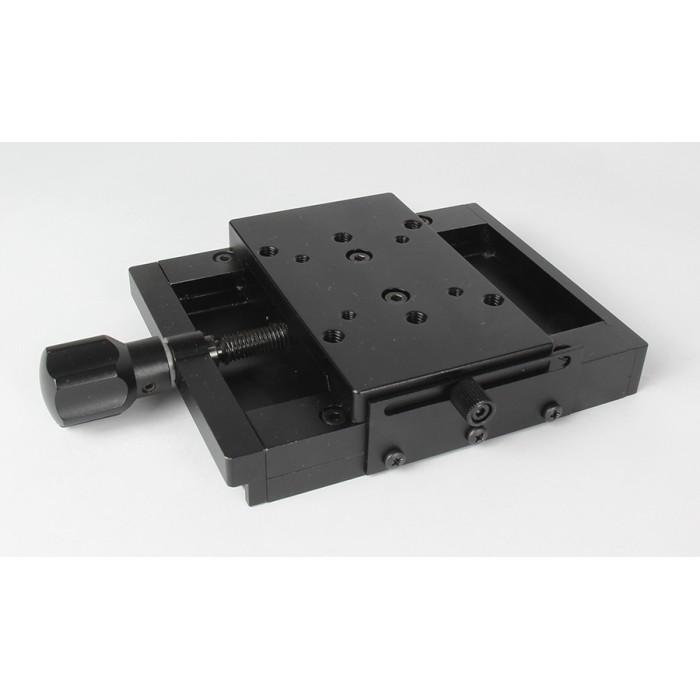

Low-Profile Dovetail Linear Stages, 50mm (2") Travel

Specifications

  Item Number: SD07TM50

  Travel Range: 50mm (1.97")

  Platform: 100mm × 60mm (3.94" x 2.36")

  Actuator Type: Grinding Screw in Center

  Travel Guide: Dovetail

  Max Load Capacity (Horizontal): 10.0kg (22lbs)

  Max Load Capacity (Vertical): 5.0kg (11.0lbs)

  Weight: 0.70kg (1.5lbs)

  Material: Aluminum Alloy

  Finish: Black-Anodized
