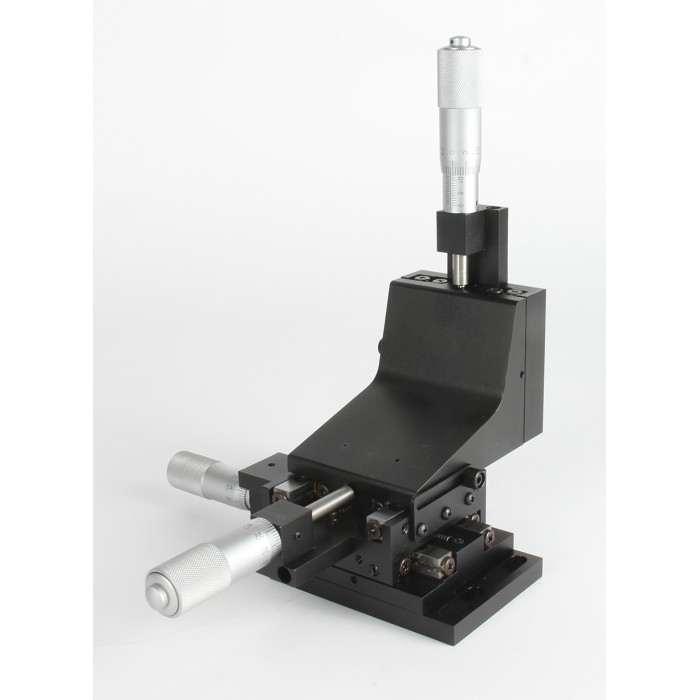

XYZ Integrated Crossed Roller Bearing Linear Stages (3-Axis)

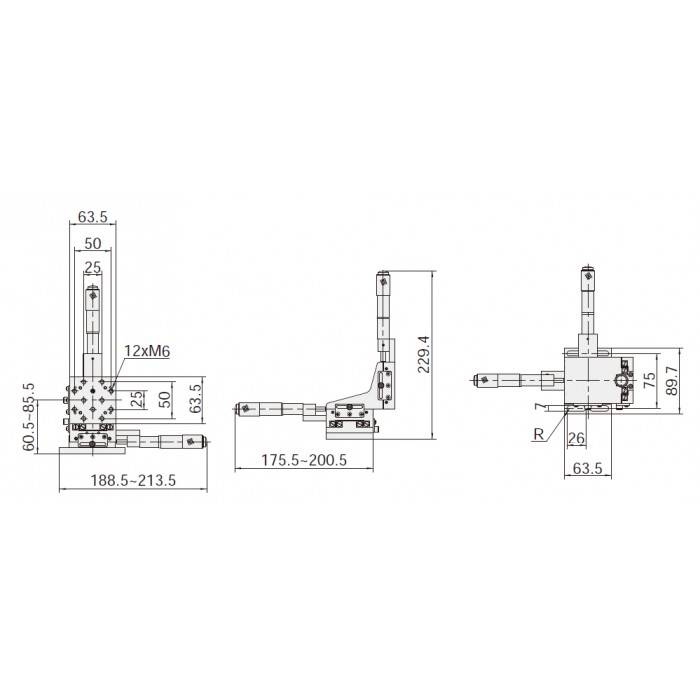

Structure Specifications

   Item Number: SD303WM25HR

   Travel Range: 25mm (0.98")

   Platform: 63.5mm × 63.5mm (2.5" x 2.5")

   Actuator Type: Micrometer Head on Right

   Adjustment: 0.5mm/Revolution, 0.01mm/Scale

   Travel Guide: Crossed Roller Bearing

   Max Load Capacity: 4.0kg (8.8lbs)

   Weight: 1.2kg (2.64lbs)

   Material: Aluminum Alloy

   Finish: Black-Anodized
