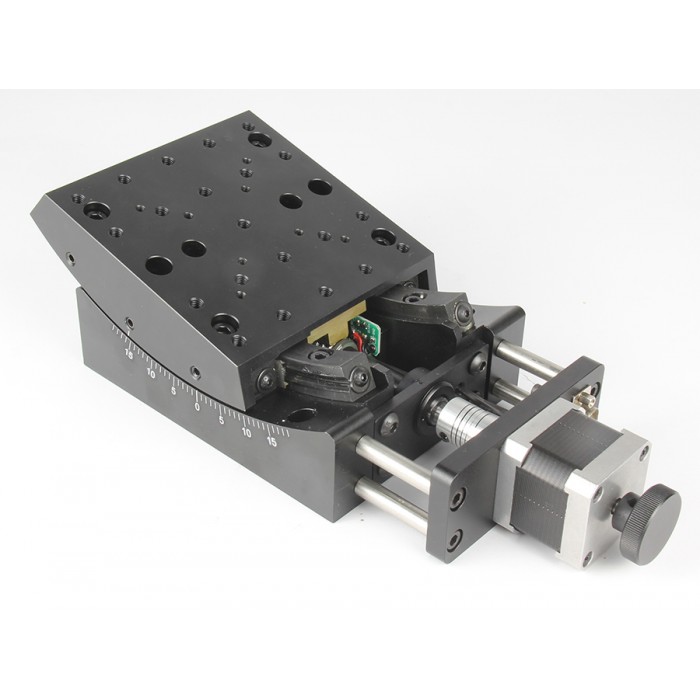

Item Number: SD02GA15

Structure

Travel Range: ±15°

Platform: 65mm × 65mm (2.56" x 2.56")

Drive Mechanism:Worm Gear

Travel Guide: Crossed Roller Bearing

Worm Gear Ratio: 300:1

Point of Rotation: 120mm (4.72")

Stepper Motor: NEMA 17 with 2-Phases & 0.9° of Step Angle

Material: Aluminum Alloy

Finish: Black Anodized

Load Capacity: 5.0kg (11.02lbs)

Weight: 0.58kg (1.27lbs)

Accuracy

Design Resolution: 1”

Max Velocity: 7°/sec

Bi-directional Repeatability: ±4"

Absolute On-Axis Accuracy: ±9"

Backlash: ±4"

Optional Accessories: Servo Motor (-S)

Limit Switches are exist.

 3D drawing STEP format
